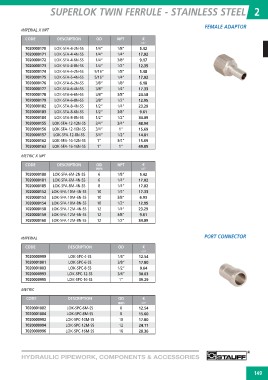

Page 155 - floMAX Catalogue 2016

SUPERLOK TWIN FERRULE - STAINLESS STEEL 2

IMPERIAL X NPT FEMALE ADAPTOR

CODE DESCRIPTION OD NPT €

A07

7020000170 LOK-SFA-4-2N-SS 1/4” 1/8” 5.42

7020000171 LOK-SFA-4-4N-SS 1/4” 1/4” 17.02

7020000172 LOK-SFA-4-6N-SS 1/4” 3/8” 9.17

7020000173 LOK-SFA-4-8N-SS 1/4” 1/2” 12.35

7020000174 LOK-SFA-5-2N-SS 5/16” 1/8” 5.48

7020000175 LOK-SFA-5-4N-SS 5/16” 1/4” 17.02

7020000176 LOK-SFA-6-2N-SS 3/8” 1/8” 6.18

7020000177 LOK-SFA-6-4N-SS 3/8” 1/4” 17.33

7020000178 LOK-SFA-6-6N-SS 3/8” 3/8” 24.58

7020000179 LOK-SFA-6-8N-SS 3/8” 1/2” 12.95

7020000182 LOK-SFA-8-4N-SS 1/2” 1/4” 23.29

7020000183 LOK-SFA-8-6N-SS 1/2” 3/8” 9.61

7020000184 LOK-SFA-8-8N-SS 1/2” 1/2” 34.09

7020000155 LOK-SFA-12-12N-SS 3/4” 3/4” 48.94

7020000156 LOK-SFA-12-16N-SS 3/4” 1” 15.69

7020000157 LOK-SFA-12-8N-SS 3/4” 1/2” 14.81

7020000162 LOK-SFA-16-12N-SS 1” 3/4” 15.69

7020000163 LOK-SFA-16-16N-SS 1” 1” 49.85

METRIC X NPT

CODE DESCRIPTION OD NPT €
mm
A07

7020000180 LOK-SFA-6M-2N-SS 6 1/8” 5.42

7020000181 LOK-SFA-6M-4N-SS 6 1/4” 17.02

7020000185 LOK-SFA-8M-4N-SS 8 1/4” 17.02

7020000152 LOK-SFA-10M-4N-SS 10 1/4” 17.33

7020000153 LOK-SFA-10M-6N-SS 10 3/8” 6.93

7020000154 LOK-SFA-10M-8N-SS 10 1/2” 12.95

7020000158 LOK-SFA-12M-4N-SS 12 1/4” 23.29

7020000159 LOK-SFA-12M-6N-SS 12 3/8” 9.61

7020000160 LOK-SFA-12M-8N-SS 12 1/2” 34.09

IMPERIAL PORT CONNECTOR

CODE DESCRIPTION OD €

7020000999 LOK-SPC-4-SS A07
7020001001 LOK-SPC-6-SS
7020001003 LOK-SPC-8-SS 1/4” 12.54
7020000993 LOK-SPC-12-SS 3/8” 17.80
7020000995 LOK-SPC-16-SS 1/2” 9.64
3/4” 30.03
METRIC DESCRIPTION 1” 39.29

CODE LOK-SPC-6M-SS OD €
LOK-SPC-8M-SS mm
7020001002 LOK-SPC-10M-SS A07
7020001004 LOK-SPC-12M-SS
7020000992 LOK-SPC-16M-SS 6 12.54
7020000994
7020000996 8 15.60

10 17.80

12 24.11

16 28.36

HYDRAULIC PIPEWORK, COMPONENTS & ACCESSORIES

149
