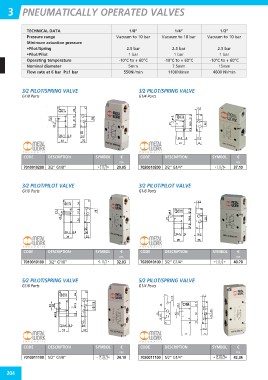

Page 210 - floMAX Catalogue 2016

3 PNEUMATICALLY OPERATED VALVES

TECHNICAL DATA 1/8” 1/4” 1/2”
Pressure range
Minimum actuation pressure Vacuum to 10 bar Vacuum to 10 bar Vacuum to 10 bar
•Pilot/Spring
•Pilot/Pilot 2.5 bar 2.5 bar 2.5 bar
Operating temperature
Nominal diameter 1 bar 1 bar 1 bar
Flow rate at 6 bar P∆1 bar
-10°C to + 60°C -10°C to + 60°C -10°C to + 60°C

5mm 7.5mm 15mm

550NI/min 1100NI/min 4600 NI/min

3/2 PILOT/SPRING VALVE 3/2 PILOT/SPRING VALVE

G1/8 Ports G1/4 Ports

CODE DESCRIPTION SYMBOL € CODE DESCRIPTION SYMBOL €

P06 P06

7010010200 3/2” G1/8” 2 29.05 7020010200 3/2” G1/4” 2 37.10
31 31

3/2 PILOT/PILOT VALVE 3/2 PILOT/PILOT VALVE

G1/8 Ports G1/8 Ports

CODE DESCRIPTION SYMBOL € CODE DESCRIPTION SYMBOL €

P06 P06

7010010100 3/2” G1/8” 2 32.03 7020010100 3/2” G1/4” 2 40.70
31 31

5/2 PILOT/SPRING VALVE 5/2 PILOT/SPRING VALVE

G1/8 Ports G1/4 Ports

11.5 11.2
G 1/8
22 Ø4.2 13 62 21.5 11.5 G 1/8
G 1/4 13 Ø4.2
42 22 22
22
13

15.2 22 42
40 25 G 1/4 22

CODE DESCRIPTION SYMBOL € CODE DESCRIPTION SYMBOL €

P06 P06
7010011100 5/2” G1/8” 34.19 7020011100 5/2” G1/4” 42.34 40

204
