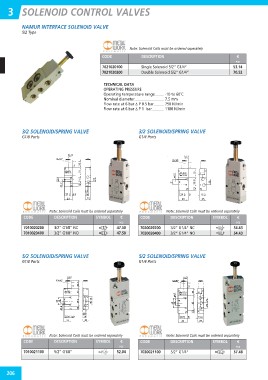

Page 212 - floMAX Catalogue 2016

3 SOLENOID CONTROL VALVES

NAMUR INTERFACE SOLENOID VALVE

5/2 Type

Note: Solenoid Coils must be ordered separately

CODE DESCRIPTION €

P06

7021020100 Single Solenoid 5/2” G1/4” 53.14
70.52
7021020200 Double Solenoid 5/2” G1/4”

TECHNICAL DATA -10 to 60˚C
OPERATING PRESSURE 7.5 mm
Operating temperature range 750 NI/min
Nominal diameter 1100 NI/min
Flow rate at 6 bar ∆ P 0.5 bar
Flow rate at 6 bar ∆ P 1 bar

3/2 SOLENOID/SPRING VALVE 3/2 SOLENOID/SPRING VALVE

G1/8 Ports G1/4 Ports

Note: Solenoid Coils must be ordered separately Note: Solenoid Coils must be ordered separately

CODE DESCRIPTION SYMBOL € CODE DESCRIPTION SYMBOL €

P06 P06

7010020200 3/2” G1/8” NC 2 2 47.50 7020020200 3/2” G1/4” NC 2 2 54.43
7010020400 31 13 7020020400 31
13
3/2” G1/8” NO 2 2 47.50 3/2” G1/4” NO 2 2
31 1 3 31 1 3 54.43

5/2 SOLENOID/SPRING VALVE 5/2 SOLENOID/SPRING VALVE

G1/8 Ports G1/4 Ports

Note: Solenoid Coils must be ordered separately Note: Solenoid Coils must be ordered separately

CODE DESCRIPTION SYMBOL € CODE DESCRIPTION SYMBOL €
P06 P06
7010021100 5/2” G1/8” 52.04 7020021100 5/2” G1/4” 57.48

206
