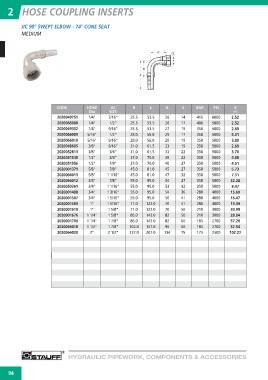

Page 100 - floMAX Catalogue 2016
P. 100
2 HOSE COUPLING INSERTS
JIC 90° SWEPT ELBOW - 74° CONE SEAT
MEDIUM
CODE HOSE JIC H L K S BAR PSI €
Dia SIZE
A02
2020049751 1/4" 7/16" 25.5 53.5 26 14 415 6000 2.52
2020066008 1/4" 1/2" 25.5 53.5 26 17 400 5800 2.52
2020049352 1/4" 9/16" 25.5 53.5 27 19 350 5000 2.69
2020066009 5/16" 1/2" 28.0 56.0 29 17 350 5000 5.31
2020066010 5/16" 9/16" 28.0 56.0 29 19 350 5000 3.00
2020048605 3/8" 9/16" 31.0 61.5 33 19 350 5000 2.69
2020052811 3/8" 3/4" 31.0 61.5 33 22 350 5000 3.70
2020051548 1/2" 3/4" 37.0 70.0 39 22 350 5000 4.08
2020051956 1/2" 7/8" 37.0 70.0 40 27 350 5000 4.51
2020001371 5/8" 7/8" 45.0 81.0 45 27 350 5000 5.73
2020066011 5/8" 1 1/16" 45.0 81.0 47 32 350 5000 7.31
2020066012 3/4" 7/8" 55.0 95.0 54 27 350 5000 32.28
2020050361 3/4" 1 1/16" 55.0 95.0 53 32 350 5000 8.47
2020001498 3/4" 1 3/16" 55.0 95.0 54 36 280 4000 15.69
2020001507 3/4" 1 5/16" 55.0 95.0 56 41 280 4000 16.47
2020001593 1" 1 5/16" 71.0 122.0 70 41 280 4000 13.39
2020001619 1" 1 5/8" 71.0 122.0 70 50 210 3000 30.99
2020001676 1 1/4" 1 5/8" 86.0 143.0 82 50 210 3000 28.04
2020001700 1 1/4" 1 7/8" 86.0 143.0 82 60 185 2700 57.20
2020066018 1 1/2" 1 7/8" 102.0 167.0 96 60 185 2700 52.54
2020066020 2" 2 1/2" 137.0 207.0 134 75 175 2500 102.22
