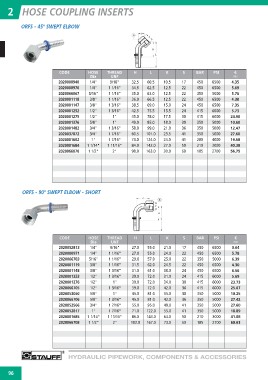

2 HOSE COUPLING INSERTS
ORFS - 45° SWEPT ELBOW
CODE HOSE THREAD H L K S BAR PSI €
Dia UNF
A02
2020000940 1/4" 9/16" 32.5 60.5 10.5 17 450 6500 4.35
2020000970 1/4" 1 1/16" 34.5 62.5 12.5 22 450 6500 5.69
2020066067 5/16" 1 1/16" 35.0 63.0 12.5 22 350 5000 5.76
2020001118 3/8" 1 1/16" 36.0 66.5 12.5 22 450 6500 4.30
2020001147 3/8" 1 3/16" 38.5 69.0 15.0 24 450 6500 7.35
2020001252 1/2" 1 3/16" 42.5 75.5 15.5 24 415 6000 5.73
2020001275 1/2" 1" 45.0 78.0 17.5 30 415 6000 24.90
2020001376 5/8" 1" 49.0 85.0 18.0 30 350 5000 10.60
2020001482 3/4" 1 3/16" 58.0 99.0 21.0 36 350 5000 12.47
2020037872 3/4" 1 7/16" 60.5 101.0 23.5 41 350 5000 27.60
2020001602 1" 1 7/16" 73.0 124.0 24.0 41 280 4000 19.68
2020001684 1 1/14" 1 11/16" 84.0 142.0 27.0 50 210 3000 40.38
2020066070 1 1/2" 2" 98.0 163.0 30.0 60 185 2700 56.75
ORFS - 90° SWEPT ELBOW - SHORT
CODE HOSE THREAD H L K S BAR PSI €
Dia UNF
A02
2020052813 1/4" 9/16" 27.0 55.0 21.0 17 450 6500 3.64
2020000971 1/4" 1 1/16" 27.0 55.0 24.0 22 450 6500 5.78
2020066703 5/16" 1 1/16" 29.0 57.0 25.0 22 350 5000 6.39
2020001119 3/8" 1 1/16" 31.5 62.0 24.5 22 450 6500 4.30
2020001148 3/8" 1 3/16" 31.0 61.0 30.0 24 450 6500 6.56
2020001253 1/2" 1 3/16" 39.0 72.0 31.0 24 415 6000 5.69
2020001276 1/2" 1" 39.0 72.0 34.0 30 415 6000 23.73
2020066705 1/2" 1 3/16" 39.0 72.0 42.0 36 415 6000 25.07
2020053050 5/8" 1" 45.0 81.0 35.0 30 350 5000 10.25
2020066706 5/8" 1 3/16" 45.0 81.0 42.0 36 350 5000 27.42
2020052566 3/4" 1 7/16" 55.0 95.0 49.0 41 350 5000 27.60
2020052817 1" 1 7/16" 71.0 122.0 55.0 41 350 5000 18.89
2020001685 1 1/14" 1 11/16" 86.0 143.0 63.0 50 210 3000 41.08
2020066708 1 1/2" 2" 102.0 167.0 73.0 60 185 2700 60.63
