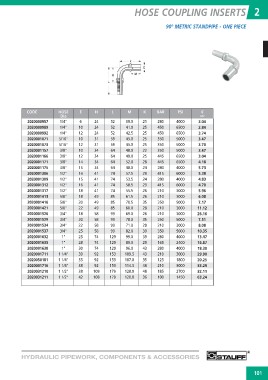

HOSE COUPLING INSERTS 2

90° METRIC STANDPIPE - ONE PIECE

CODE HOSE E H L M K BAR PSI €
Dia
4000 A02
2020000957 1/4" 6 24 52 39.0 21 280 6500
6500 3.04
2020000989 1/4" 10 24 52 41.0 25 450 5000 2.84
5000 3.74
2020000992 1/4" 12 24 52 42.5 25 450 5000 3.47
6500 3.70
2020001071 5/16" 10 31 59 45.0 25 350 6500 3.47
4000 3.04
2020001073 5/16" 12 31 59 45.0 25 350 6000 4.18
4000 5.73
2020001157 3/8" 10 34 64 48.0 22 350 6000 5.38
3000 4.83
2020001166 3/8" 12 34 64 49.0 25 445 3000 4.70
5000 5.96
2020001171 3/8" 14 34 64 52.0 28 445 3000 6.08
3000 7.17
2020001175 3/8" 15 34 64 48.0 24 280 5000 11.12
3000 26.16
2020001306 1/2" 14 41 74 57.5 28 415 5000 7.51
4000 8.08
2020001309 1/2" 15 41 74 53.5 24 280 2400 10.35
4000 13.47
2020001312 1/2" 16 41 74 58.5 29 415 3000 16.87
1800 18.30
2020001317 1/2" 18 41 74 55.5 26 210 3000 29.90
2700 20.25
2020001413 5/8" 18 49 85 61.5 26 210 1450 33.29
32.11
2020001416 5/8" 20 49 85 70.5 35 350 63.24

2020001421 5/8" 22 49 85 60.0 28 210

2020001526 3/4" 18 58 99 69.0 26 210

2020001529 3/4" 20 58 99 78.0 35 350

2020001534 3/4" 22 58 99 71.0 28 210

2020001537 3/4" 25 58 99 82.0 39 350

2020001632 1" 25 74 129 99.0 39 280

2020001635 1" 28 74 129 89.0 29 165

2020001638 1" 30 74 129 96.0 43 280

2020001711 1 1/4" 30 92 153 109.5 43 210

2020050181 1 1/4" 35 92 153 107.0 35 125

2020001716 1 1/4" 38 92 153 114.5 48 210

2020031210 1 1/2" 38 108 179 128.0 48 185

2020031211 1 1/2" 42 108 179 120.0 36 100
