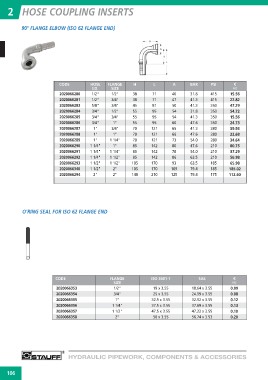

Page 112 - floMAX Catalogue 2016

2 HOSE COUPLING INSERTS

90° FLANGE ELBOW (ISO 62 FLANGE END)

CODE HOSE FLANGE H L A BAR PSI €
I.D. SIZE
A02

2020066280 1/2" 1/2" 38 71 40 31.8 415 15.56

2020066281 1/2" 3/4" 38 71 47 41.3 415 22.82

2020066283 5/8" 3/4" 45 81 50 41.3 350 47.29

2020066284 3/4" 1/2" 55 95 54 31.8 350 54.72

2020066285 3/4" 3/4" 55 95 54 41.3 350 15.56

2020066286 3/4" 1" 55 95 60 47.6 350 24.73

2020066287 1" 3/4" 70 121 65 41.3 280 59.93

2020066288 1" 1" 70 121 66 47.6 280 22.68

2020066289 1" 1 1/4" 70 121 73 54.0 280 34.64

2020066290 1 1/4" 1" 85 142 80 47.6 210 80.75

2020066291 1 1/4" 1 1/4" 85 142 78 54.0 210 37.29

2020066292 1 1/4" 1 1/2" 85 142 86 63.5 210 56.98

2020066293 1 1/2" 1 1/2" 105 170 93 63.5 185 65.98

2020066340 1 1/2" 2" 105 170 109 79.4 185 185.02

2020066294 2" 2" 140 210 125 79.4 175 112.60

O’RING SEAL FOR ISO 62 FLANGE END

CODE FLANGE ISO 3601-1 SAE €
SIZE
2020066353 1/2" 19 x 3.55 18.64 x 3.55 A02
2020066354 3/4" 25 x 3.55 24.99 x 3.55
2020066355 1" 32.5 x 3.55 32.92 x 3.55 0.09
2020066356 1 1/4" 37.5 x 3.55 37.69 x 3.55 0.08
2020066357 1 1/2" 47.5 x 3.55 47.22 x 3.55 0.12
2020066358 2" 56 x 3.55 56.74 x 3.53 0.13
0.10
0.20

HYDRAULIC PIPEWORK, COMPONENTS & ACCESSORIES
106
