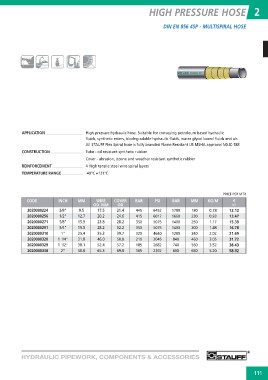

Page 117 - floMAX Catalogue 2016
P. 117
HIGH PRESSURE HOSE 2
DIN EN 856 4SP - MULTISPIRAL HOSE
APPLICATION High pressure hydraulic hose. Suitable for conveying petroleum based hydraulic
fluids, synthetic esters, biodegradable hydraulic fluids, water glycol based fluids and air.
All STAUFF Flex Spiral hose is fully branded Flame Resistant US MSHA approval N0.IC-188
CONSTRUCTION Tube - oil resistant synthetic rubber
Cover - abrasion, ozone and weather resistant synthetic rubber
REINFORCEMENT 4 High tensile steel wire spiral layers
TEMPERATURE RANGE -40°C +121°C
PRICE PER MTR
CODE INCH MM WIRE COVER BAR PSI BAR MM KG/M €
OD MM OD
2020000224 3/8" 6452 1780 A03
2020000256 1/2" 9.5 17.5 21.4 445 6017 1660
2020000271 5/8" 12.7 20.2 24.6 415 5075 1400 180 0.78 12.12
2020000291 3/4" 15.9 23.8 28.2 350 5075 1400 230 0.93 13.47
2020000310 1" 19.0 28.2 32.2 350 4640 1280 250 1.17 15.39
2020000320 1 1/4" 25.4 35.3 39.7 320 3045 840 300 1.48 16.78
2020000329 1 1/2" 31.8 46.0 50.8 210 2682 740 340 2.02 21.69
2020000338 2" 38.1 52.4 57.2 185 2392 660 460 3.05 31.72
50.8 65.3 69.8 165 560 3.52 38.43
660 5.20 58.92
