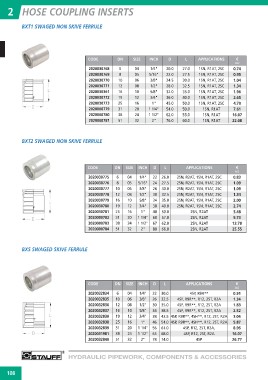

2 HOSE COUPLING INSERTS

BXT1 SWAGED NON SKIVE FERRULE

CODE DN SIZE INCH D L APPLICATIONS €

2020030768 6 A02
2020030769 8
2020030770 10 04 1/4" 20.0 27.0 1SN, R1AT, 2SC 0.74
2020030771 12
2020030361 16 05 5/16" 22.0 27.5 1SN, R1AT, 2SC 0.95
2020030772 19
2020030773 25 06 3/8" 24.5 30.0 1SN, R1AT, 2SC 1.04
2020000779 31
2020000780 38 08 1/2" 28.0 32.5 1SN, R1AT, 2SC 1.34
2020000781 51
10 5/8" 32.0 35.0 1SN, R1AT, 2SC 1.96

12 3/4" 36.0 40.0 1SN, R1AT, 2SC 2.65

16 1" 45.0 50.0 1SN, R1AT, 2SC 4.70

20 1 1/4" 54.0 50.0 1SN, R1AT 7.61

24 1 1/2" 62.0 55.0 1SN, R1AT 16.07

32 2" 76.0 60.0 1SN, R1AT 22.08

BXT2 SWAGED NON SKIVE FERRULE

CODE DN SIZE INCH D L APPLICATIONS €

2020030775 6 04 1/4" 22 26.0 2SN, R2AT, 1SN, R1AT, 2SC A02
2020030776 8 05 5/16" 24 27.5 2SN, R2AT, 1SN, R1AT, 2SC
2020030777 10 06 3/8" 26 30.0 2SN, R2AT, 1SN, R1AT, 2SC 0.83
2020030778 12 08 1/2" 30 32.5 2SN, R2AT, 1SN, R1AT, 2SC 1.09
2020030779 16 10 5/8" 34 35.0 2SN, R2AT, 1SN, R1AT, 2SC 1.09
2020030780 19 12 3/4" 38 40.0 2SN, R2AT, 1SN, R1AT, 2SC 1.34
2020030781 25 16 1" 48 50.0 2.00
2020000782 31 20 1 1/4" 60 57.0 2SN, R2AT 2.74
2020000783 38 24 1 1/2" 67 62.0 2SN, R2AT 5.48
2020000784 51 32 2" 80 66.0 2SN, R2AT 9.73
2SN, R2AT 13.78
25.55

BXS SWAGED SKIVE FERRULE

CODE DN SIZE INCH D L APPLICATIONS €

A02

2020032834 6 04 1/4" 22 30.0 4SP, R9R** 0.91

2020032835 10 06 3/8" 26 32.5 4SP, R9R**, R12, 2ST, R2A 1.34

2020032836 12 08 1/2" 30 35.0 4SP, R9R**, R12, 2ST, R2A 1.83

2020032837 16 10 5/8" 34 38.5 4SP, R9R**, R12, 2ST, R2A 2.52

2020032830 19 12 3/4" 38 43.5 4SP, R9R**, 4SH**, R12, 2ST, R2A 3.04

2020032838 25 16 1" 46 54.0 4SP, R9R**, 4SH**, R12, 2ST, R2A 5.87

2020032839 31 20 1 1/4" 56 61.0 4SP, R12, 2ST, R2A, 8.96

2020031981 38 24 1 1/2" 65 68.0 4SP, R12, 2ST, R2A 16.07

2020032840 51 32 2" 78 74.0 4SP 26.77
