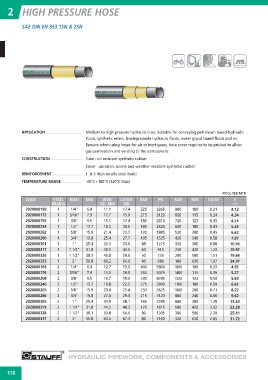

Page 116 - floMAX Catalogue 2016
P. 116
2 HIGH PRESSURE HOSE
SAE DIN EN 853 1SN & 2SN
APPLICATION Medium to high pressure hydraulic lines. Suitable for conveying petroleum based hydraulic
fluids, synthetic esters, biodegradable hydraulic fluids, water glycol based fluids and air.
Beware when using hoses for air or inert gases, hose cover requires to be pricked to allow
gas permeation and venting to the atmosphere.
CONSTRUCTION Tube - oil resistant synthetic rubber
Cover - abrasion, ozone and weather resistant synthetic rubber
REINFORCEMENT 1 & 2 High tensile steel braid
TEMPERATURE RANGE -40°C +100°C (120°C Max)
PRICE PER MTR
CODE STEEL INCH MM WIRE COVER BAR PSI BAR MM KG/M €
BRAIDS OD MM OD
A03
2020000150 1 1/4" 6.4 11.1 13.4 225 3265 900 100 0.21
4.12
2020000173 1 5/16" 7.9 12.7 15.0 215 3120 850 115 0.24 4.34
4.51
2020000192 1 3/8" 9.5 15.1 17.4 180 2610 720 125 0.33 5.41
6.62
2020000234 1 1/2" 12.7 18.3 20.6 160 2320 640 180 0.41 7.87
10.56
2020000262 1 5/8" 15.9 21.4 23.7 130 1885 520 200 0.45 15.97
19.64
2020000280 1 3/4" 19.0 25.4 27.7 105 1525 420 240 0.58 24.97
4.92
2020000301 1 1" 25.4 33.3 35.6 88 1275 350 300 0.88 5.27
5.63
2020000317 1 1 1/4" 31.8 40.5 43.5 63 915 250 420 1.23 6.62
8.22
2020000326 1 1 1/2" 38.1 46.8 50.6 50 725 200 500 1.51 9.62
13.33
2020000335 1 2" 50.8 60.2 64.0 40 580 160 630 1.97 22.28
25.41
2020000163 2 1/4" 6.4 12.7 15.0 400 5800 1600 100 0.33 31.72
2020000176 2 5/16" 7.9 14.3 16.6 350 5075 1400 115 0.39
2020000208 2 3/8" 9.5 16.7 19.0 330 4785 1320 125 0.50
2020000246 2 1/2" 12.7 19.8 22.2 275 3990 1100 180 0.59
2020000265 2 5/8" 15.9 23.0 25.4 250 3625 1000 200 0.71
2020000286 2 3/4" 19.0 27.0 29.3 215 3120 860 240 0.86
2020000305 2 1" 25.4 34.9 38.1 165 2395 660 300 1.28
2020000319 2 1 1/4" 31.8 44.5 48.3 125 1815 500 420 2.02
2020000328 2 1 1/2" 38.1 50.8 54.6 90 1305 360 500 2.20
2020000337 2 2" 50.8 63.5 67.3 80 1160 320 630 2.85
