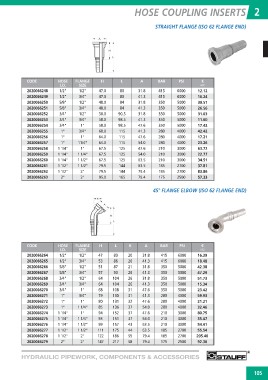

Page 111 - floMAX Catalogue 2016

HOSE COUPLING INSERTS 2

STRAIGHT FLANGE (ISO 62 FLANGE END)

CODE HOSE FLANGE H L A BAR PSI €
I.D. SIZE
A02

2020066248 1/2" 1/2" 47.0 80 31.8 415 6000 12.12

2020066249 1/2" 3/4" 47.0 80 41.3 415 6000 16.24

2020066250 5/8" 1/2" 48.0 84 31.8 350 5000 30.51

2020066251 5/8" 3/4" 48.0 84 41.3 350 5000 26.56

2020066252 3/4" 1/2" 50.0 90.5 31.8 350 5000 31.03

2020066253 3/4" 3/4" 58.0 98.5 41.3 350 5000 11.60

2020066254 3/4" 1" 58.0 98.5 47.6 350 5000 17.42

2020066255 1" 3/4" 60.0 115 41.3 280 4000 42.42

2020066256 1" 1" 64.0 115 47.6 280 4000 17.21

2020066257 1" 11/4" 64.0 115 54.0 280 4000 23.26

2020066258 1 1/4" 1" 67.5 125 47.6 210 3000 63.72

2020066259 1 1/4" 1 1/4" 67.5 125 54.0 210 3000 22.77

2020066260 1 1/4" 1 1/2" 67.5 125 63.5 210 3000 34.51

2020066261 1 1/2" 1 1/2" 79.5 144 63.5 185 2700 37.81

2020066262 1 1/2" 2" 79.5 144 79.4 185 2700 83.86

2020066263 2" 2" 95.0 165 79.4 175 2500 57.33

45° FLANGE ELBOW (ISO 62 FLANGE END)

CODE HOSE FLANGE H L K A BAR PSI €
I.D. SIZE
A02

2020066264 1/2" 1/2" 47 80 20 31.8 415 6000 16.39

2020066265 1/2" 3/4" 53 86 26 41.3 415 6000 18.48

2020066266 5/8" 1/2" 51 87 21 31.8 350 5000 42.38

2020066267 5/8" 3/4" 57 93 26 41.3 350 5000 47.29

2020066268 3/4" 1/2" 64 104 26 31.8 350 5000 51.73

2020066269 3/4" 3/4" 64 104 26 41.3 350 5000 15.34

2020066270 3/4" 1" 68 108 31 47.6 350 5000 23.42

2020066271 1" 3/4" 79 130 31 41.3 280 4000 59.93

2020066272 1" 1" 80 131 32 47.6 280 4000 21.21

2020066273 1" 1 1/4" 85 136 37 54.0 280 4000 32.46

2020066274 1 1/4" 1" 94 152 37 47.6 210 3000 80.75

2020066275 1 1/4" 1 1/4" 93 151 37 54.0 210 3000 35.47

2020066276 1 1/4" 1 1/2" 99 157 43 63.5 210 3000 54.41

2020066277 1 1/2" 1 1/2" 111 175 44 63.5 185 2700 55.54

2020066278 1 1/2" 2" 122 186 55 79.4 185 2700 205.40

2020066279 2" 2" 147 217 58 79.4 175 2500 92.36

HYDRAULIC PIPEWORK, COMPONENTS & ACCESSORIES

105
