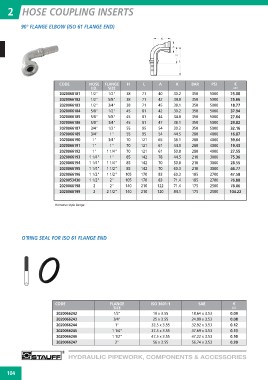

Page 110 - floMAX Catalogue 2016

2 HOSE COUPLING INSERTS

90° FLANGE ELBOW (ISO 61 FLANGE END)

CODE HOSE FLANGE H L A K BAR PSI €
I.D. SIZE
5000 A02
2020068181 1/2" 1/2" 38 71 40 30.2 350 5000
5000 25.08
2020066182 1/2" 5/8" 38 71 42 34.0 350 5000 25.66
5000 18.77
2020066183 1/2" 3/4" 38 71 45 38.1 350 5000 37.94
5000 27.64
2020066184 5/8" 1/2" 45 81 42 30.2 350 4000 29.82
4000 32.16
2020066185 5/8" 5/8" 45 81 44 34.0 350 4000 16.87
4000 39.64
2020066186 5/8" 3/4" 45 81 47 38.1 350 3000 19.43
3000 27.55
2020066187 3/4" 1/2" 55 95 54 30.2 350 3000 75.36
2700 28.55
2020066189 3/4" 1" 55 95 54 44.5 280 2700 46.77
2500 47.58
2020066190 1" 3/4" 70 121 65 38.1 280 2500 76.88
78.06
2020066191 1" 1" 70 121 61 44.5 280 104.22

2020066192 1" 1 1/4" 70 121 61 50.8 280

2020066193 1 1/4" 1" 85 142 78 44.5 210

2020066194 1 1/4" 1 1/4" 85 142 70 50.8 210

2020066195 1 1/4" 1 1/2" 85 142 70 60.3 210

2020066196 1 1/2" 1 1/2" 105 170 83 60.3 185

2020053430 1 1/2" 2" 105 170 83 71.4 185

2020066198 2 2" 140 210 122 71.4 175

2020066199 2 2 1/2" 140 210 120 84.1 175

Komatsu style flange

O’RING SEAL FOR ISO 61 FLANGE END

CODE FLANGE ISO 3601-1 SAE €
SIZE
2020066242 1/2" 19 x 3.55 18.64 x 3.53 A02
2020066243 3/4" 25 x 3.55 24.99 x 3.53
2020066244 1" 32.5 x 3.55 32.92 x 3.53 0.09
2020066245 1 1/4" 37.5 x 3.55 37.69 x 3.53 0.08
2020066246 1 1/2" 47.5 x 3.55 47.22 x 3.53 0.12
2020066247 2" 56 x 3.55 56.74 x 3.53 0.13
0.10
0.20

HYDRAULIC PIPEWORK, COMPONENTS & ACCESSORIES
104
