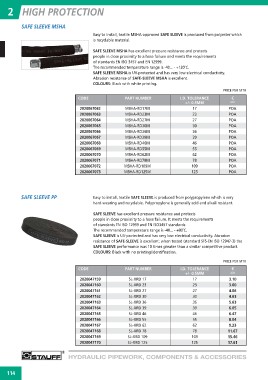

Page 120 - floMAX Catalogue 2016

2 HIGH PROTECTION

SAFE SLEEVE MSHA

Easy to install, textile MSHA-approved SAFE SLEEVE is produced from polyester which
is recyclable material.

SAFE SLEEVE MSHA has excellent pressure resistance and protects
people in close proximity to a hose failure and meets the requirements
of standards EN ISO 3457 and EN 12999.
The recommended temperature range is -40... - +120˚C.
SAFE SLEEVE MSHA is UV-protected and has very low electrical conductivity.
Abrasion resistance of SAFE-SLEEVE MSHA is excellent.
COLOURS: Black with white printing.

PRICE PER MTR

CODE PART NUMBER I.D. TOLERANCE €
+/- 0.5MM
2020067062 MSHA-RD17M 17 A04
2020067063 MSHA-RD23M 23
2020067064 MSHA-RD27M 27 POA
2020067065 MSHA-RD30M 30 POA
2020067066 MSHA-RD36M 36 POA
2020067067 MSHA-RD39M 39 POA
2020067068 MSHA-RD46M 46 POA
2020067069 MSHA-RD55M 55 POA
2020067070 MSHA-RD62M 62 POA
2020067071 MSHA-RD78M 78 POA
2020067072 MSHA-RD109M 109 POA
2020067073 MSHA-RD125M 125 POA
POA
POA

SAFE SLEEVE PP Easy to install, textile SAFE SLEEVE is produced from polypropylene which is very
hard-wearing and recyclable. Polypropylene is generally acid and alkali resistant.

SAFE SLEEVE has excellent pressure resistance and protects
people in close proximity to a hose failure. It meets the requirements
of standards EN ISO 12999 and EN ISO3457 standards.
The recommended temperature range is -40... - +80˚C.
SAFE SLEEVE is UV-protected and has very low electrical conductivity. Abrasion
resistance of SAFE-SLEEVE is excellent: when tested (standard SFS-EN ISO 12947-3) the
SAFE SLEEVE performance was 10 times greater than a similar competitive product.
COLOURS: Black with no printing/identification.

CODE PART NUMBER I.D. TOLERANCE PRICE PER MTR
+/- 0.5MM
2020047159 SL-XRD 17 17 €
2020047160 SL-XRD 23 23
2020047161 SL-XRD 27 27 A04
2020047162 SL-XRD 30 30
2020047163 SL-XRD 36 36 3.10
2020047164 SL-XRD 39 39 3.60
2020047165 SL-XRD 46 46 4.06
2020047166 SL-XRD 55 55 4.63
2020047167 SL-XRD 62 62 5.63
2020047168 SL-XRD 78 78 6.05
2020047169 SL-XRD 109 109 6.47
2020047170 SL-XRD 125 125 8.04
9.23
11.67
15.46
17.61

HYDRAULIC PIPEWORK, COMPONENTS & ACCESSORIES
114
