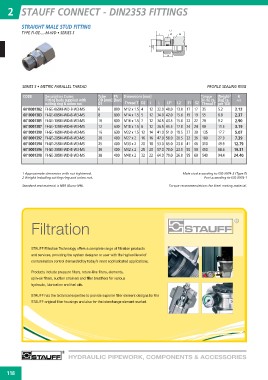

Page 124 - floMAX Catalogue 2016
P. 124
2 STAUFF CONNECT - DIN2353 FITTINGS
STRAIGHT MALE STUD FITTING L1
i S1 S2
TYPE FI-GE-...-M-WD • SERIES S
T
D2
D1
L2
L
SERIES S • METRIC PARALLEL THREAD PROFILE SEALING RING
CODE Description Codes Tube PN Dimensions [mm] Torque Weight2 €
Fitting body supplied with OD [mm] [bar] [N·m] ca. [kg] ca.
cutting ring & union nut D1 Thread T D2 i L L11 L2 S1 S2 Thread T per 100 A05
6010001382 FI-GE-06SM-WD-B-W3-MS 6 800 M12 x 1.5 4 12 32.0 40.0 13.0 17 17 35 5.2 2.12
6010001383 FI-GE-08SM-WD-B-W3-MS 8 800 M14 x 1.5 5 12 34.0 42.0 15.0 19 19 55 6.8 2.37
6010001385 FI-GE-10SM-WD-B-W3-MS 10 800 M16 x 1.5 7 12 34.5 43.5 15.0 22 22 70 9.2 2.90
6010001387 FI-GE-12SM-WD-B-W3-MS 12 630 M18 x 1.5 8 12 36.5 45.5 17.0 24 24 90 11.5 3.19
6010001390 FI-GE-16SM-WD-B-W3-MS 16 630 M22 x 1.5 12 14 41.0 51.0 18.5 27 30 135 17.7 5.07
6010001392 FI-GE-20SM-WD-B-W3-MS 20 400 M27 x 2 16 16 47.0 58.0 20.5 32 36 180 27.9 7.39
6010001394 FI-GE-25SM-WD-B-W3-MS 25 400 M33 x 2 20 18 53.0 65.0 23.0 41 46 310 49.9 12.79
6010001396 FI-GE-30SM-WD-B-W3-MS 30 400 M42 x 2 25 20 57.0 70.0 23.5 50 50 450 68.6 19.31
6010001398 FI-GE-38SM-WD-B-W3-MS 38 400 M48 x 2 32 22 64.0 79.0 26.0 55 60 540 94.4 24.40
1 Approximate dimension with nut tightened. Male stud according to ISO 9974-2 (Type E)
2 Weight including cutting ring and union nut. Port according to ISO 9974-1
Standard seal material is NBR (Buna-N®). Torque recommendations for Steel mating material.
Filtration
STAUFF Filtration Technology offers a complete range of filtration products
and services, providing the system designer or user with the highest level of
contamination control demanded by today’s most sophisticated applications.
Products include pressure filters, return-line filters, elements,
spin-on filters, suction strainers and filler breathers for various
hydraulic, lubrication and fuel oils.
STAUFF has the technical expertise to provide superior filter element designs for the
STAUFF original filter housings and also for the interchange element market.
HYDRAULIC PIPEWORK, COMPONENTS & ACCESSORIES
118
