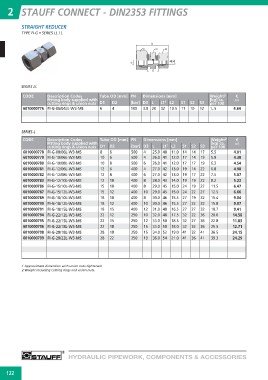

Page 128 - floMAX Catalogue 2016

2 STAUFF CONNECT - DIN2353 FITTINGS

STRAIGHT REDUCER

TYPE FI-G • SERIES LL / L

L1 S2
S3 S1

D1
D3
D2

L2

L

SERIES LL

CODE Description Codes Tube OD [mm] PN Dimensions [mm] Weight2 €
Fitting body supplied with [kg] ca.
cutting rings & union nuts D1 D2 [bar] D3 L L11 L2 S1 S2 S3 per 100 A05

6010000776 FI-G-06/04LL-W3-MS 64 100 3.0 20 32 10.5 11 10 12 1,.5 4.64

SERIES L

CODE Description Codes Tube OD [mm] PN Dimensions [mm] Weight2 €
Fitting body supplied with [kg] ca.
cutting rings & union nuts D1 D2 [bar] D3 L L11 L2 S1 S2 S3 per 100 A05
5.5
6010000778 FI-G-08/06L-W3-MS 86 500 4 25.0 40 11.0 14 14 17 5.9 4.01
6.3 4.38
6010000779 FI-G-10/06L-W3-MS 10 6 500 4 26.0 41 12.0 17 14 19 6.8 4.54
7.5 4.98
6010000780 FI-G-10/08L-W3-MS 10 8 500 6 26.0 41 12.0 17 17 19 8.2 5.07
11.5 5.22
6010000781 FI-G-12/06L-W3-MS 12 6 400 4 27.0 42 13.0 19 14 22 12.5 6.47
15.4 6.66
6010000782 FI-G-12/08L-W3-MS 12 8 400 6 27.0 42 13.0 19 17 22 15.8 9.04
18.7 9.07
6010000783 FI-G-12/10L-W3-MS 12 10 400 8 28.0 43 14.0 19 19 22 20.6 9.41
22.8 14.58
6010000786 FI-G-15/10L-W3-MS 15 10 400 8 29.0 45 15.0 24 19 27 25.5 11.83
36.5 12.71
6010000787 FI-G-15/12L-W3-MS 15 12 400 10 29.0 45 15.0 24 22 27 39.3 24.15
24.29
6010000789 FI-G-18/10L-W3-MS 18 10 400 8 30.0 46 15.5 27 19 32

6010000790 FI-G-18/12L-W3-MS 18 12 400 10 30.0 46 15.5 27 22 32

6010000791 FI-G-18/15L-W3-MS 18 15 400 12 31.0 48 16.5 27 27 32

6010000794 FI-G-22/12L-W3-MS 22 12 250 10 32.0 48 17.5 32 22 36

6010000795 FI-G-22/15L-W3-MS 22 15 250 12 33.0 50 18.5 32 27 36

6010000796 FI-G-22/18L-W3-MS 22 18 250 15 33.0 50 18.0 32 32 36

6010000798 FI-G-28/18L-W3-MS 28 18 250 15 34.0 52 19.0 41 32 41

6010000799 FI-G-28/22L-W3-MS 28 22 250 19 36.0 54 21.0 41 36 41

1 Approximate dimension with union nuts tightened.
2 Weight including cutting rings and union nuts.
