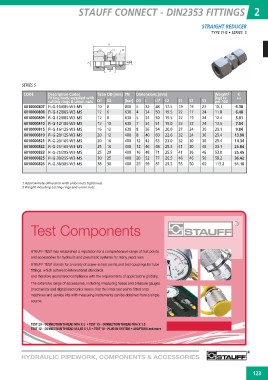

Page 129 - floMAX Catalogue 2016

STAUFF CONNECT - DIN2353 FITTINGS 2

STRAIGHT REDUCER

TYPE FI-G • SERIES S

L1 S2
S3 S1

D1
D3
D2

L2

L

SERIES S

CODE Description Codes Tube OD [mm] PN Dimensions [mm] Weight2 €
Fitting body supplied with [kg] ca.
cutting rings & union nuts D1 D2 [bar] D3 L L11 L2 S1 S2 S3 per 100 A05

6010000807 FI-G-10/08S-W3-MS 10 8 800 5 32 48 17.5 19 19 22 10.1 6.38

6010000808 FI-G-12/06S-W3-MS 12 6 630 4 34 50 19.5 22 17 24 11.8 6.48

6010000809 FI-G-12/08S-W3-MS 12 8 630 5 34 50 19.5 22 19 24 12.4 5.01

6010000810 FI-G-12/10S-W3-MS 12 10 630 7 34 51 19.0 22 22 24 13.5 7.54

6010000815 FI-G-16/12S-W3-MS 16 12 630 8 36 54 20.0 27 24 30 20.1 9.84

6010000819 FI-G-20/12S-W3-MS 20 12 400 8 40 60 22.0 32 24 36 29.4 13.90

6010000821 FI-G-20/16S-W3-MS 20 16 400 12 42 63 23.0 32 30 36 29.4 14.34

6010000822 FI-G-25/16S-W3-MS 25 16 400 12 46 68 25.5 41 30 46 33.1 25.84

6010000823 FI-G-25/20S-W3-MS 25 20 400 16 48 71 25.5 41 36 46 53.0 25.45

6010000825 FI-G-30/25S-W3-MS 30 25 400 20 52 77 26.5 46 46 50 58.2 36.42

6010000826 FI-G-38/30S-W3-MS 38 30 400 25 59 87 29.5 55 50 60 113.2 51.10

1 Approximate dimension with union nuts tightened.
2 Weight including cutting rings and union nuts.

Test Components

STAUFF TEST has established a reputation for a comprehensive range of test points
and accessories for hydraulic and pneumatic systems for many years now.
STAUFF TEST stands for a variety of screw-in test points and test couplings for tube
fittings, which adhere to international standards
and therefore guaranteed compliance with the requirements of applications globally.
The extensive range of accessories, including measuring hoses and pressure gauges
(mechanical and digital/electronic) means that the initial test points fitted onto
machines and service kits with measuring instruments can be obtained from a single
source.

TEST 20 - CONNECTION THREAD M16 X 2 • TEST 15 - CONNECTION THREAD M16 X 1,5
TEST 12 - CONNECTION THREAD S12,65 X 1,5 • TEST 10 - PLUG IN SYSTEM • ADAPTORS and more
