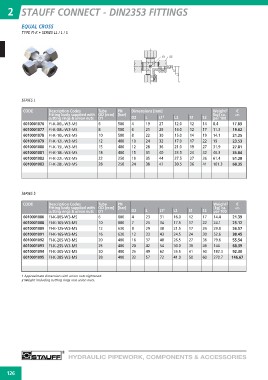

Page 132 - floMAX Catalogue 2016

2 STAUFF CONNECT - DIN2353 FITTINGS

EQUAL CROSS

TYPE FI-K • SERIES LL / L / S

S1 S2

D2
D1
L2
L1

L

SERIES L

CODE Description Codes Tube PN Dimensions [mm] Weight2 €
Fitting body supplied with OD [mm] [bar] [kg] ca.
6010001076 cutting rings & union nuts D1 D2 L L11 L2 S1 S2 per 100 A05
6010001077
6010001078 FI-K-06L-W3-MS 6 500 4 19 27 12.0 12 14 8.4 17.83
6010001079
6010001080 FI-K-08L-W3-MS 8 500 6 21 29 14.0 12 17 11.3 19.62
6010001081
6010001082 FI-K-10L-W3-MS 10 500 8 22 30 15.0 14 19 14.1 21.25
6010001083
FI-K-12L-W3-MS 12 400 10 24 32 17.0 17 22 19 23.53

FI-K-15L-W3-MS 15 400 12 28 36 21.0 19 27 31.9 27.81

FI-K-18L-W3-MS 18 400 15 31 40 23.5 24 32 46.3 35.84

FI-K-22L-W3-MS 22 250 19 35 44 27.5 27 36 61.4 51.28

FI-K-28L-W3-MS 28 250 24 38 47 30.5 36 41 101.3 68.35

SERIES S

CODE Description Codes Tube PN Weight2 €
Fitting body supplied with OD [mm] [bar] [kg] ca.
cutting rings & union nuts D1 D2 L L11 L2 S1 S2 per 100 A05

6010001086 FI-K-06S-W3-MS 6 800 4 23 31 16.0 12 17 14.4 21.39

6010001088 FI-K-10S-W3-MS 10 800 7 25 34 17.5 17 22 24.1 25.12

6010001089 FI-K-12S-W3-MS 12 630 8 29 38 21.5 17 24 29.8 26.57

6010001091 FI-K-16S-W3-MS 16 630 12 33 43 24.5 24 30 52.6 38.45

6010001092 FI-K-20S-W3-MS 20 400 16 37 48 26.5 27 36 79.6 55.54

6010001093 FI-K-25S-W3-MS 25 400 20 42 54 30.0 36 46 144 68.39

6010001094 FI-K-30S-W3-MS 30 400 25 49 62 35.5 41 50 182.3 92.30

6010001095 FI-K-38S-W3-MS 38 400 32 57 72 41.0 50 60 270.7 146.67

1 Approximate dimension with union nuts tightened.
2 Weight including cutting rings and union nuts.
