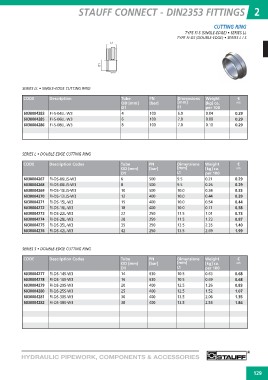

Page 135 - floMAX Catalogue 2016

STAUFF CONNECT - DIN2353 FITTINGS 2

CUTTING RING

TYPE FI-S (SINGLE-EDGE) • SERIES LL
TYPE FI-DS (DOUBLE-EDGE) • SERIES L / S

L1

D1

SERIES LL • SINGLE-EDGE CUTTING RING

CODE Description Tube PN Dimensions Weight €
OD [mm] [bar] [mm] [kg] ca.
6030004283 FI-S-04LL-W3 D1 L1 per 100 A05
6030004285 FI-S-06LL-W3 4 100 0.04
6030004286 FI-S-08LL-W3 6 100 6.0 0.08 0.29
8 100 7.0 0.10 0.29
7.0 0.29

SERIES L • DOUBLE-EDGE CUTTING RING

CODE Description Codes Tube PN Dimensions Weight €
OD [mm] [bar] [mm] [kg] ca.
6030004267 FI-DS-06L/S-W3 D1 L1 per 100 A05
6030004268 FI-DS-08L/S-W3 6 500 0.21
6030004269 FI-DS-10L/S-W3 8 500 9.5 0.26 0.29
6030004270 FI-DS-12L/S-W3 10 500 9.5 0.34 0.29
6030004271 FI-DS-15L-W3 12 400 10.0 0.44 0.33
6030004272 FI-DS-18L-W3 15 400 10.0 0.54 0.39
6030004273 FI-DS-22L-W3 18 400 10.0 0.71 0.44
6030004274 FI-DS-28L-W3 22 250 10.0 1.01 0.58
6030004275 FI-DS-35L-W3 28 250 11.5 1.23 0.73
6030004276 FI-DS-42L-W3 35 250 11.5 2.35 0.87
42 250 13.5 2.69 1.40
13.5 1.99

SERIES S • DOUBLE-EDGE CUTTING RING

CODE Description Codes Tube PN Dimensions Weight €
OD [mm] [bar] [mm] [kg] ca.
6030004277 FI-DS-14S-W3 D1 L1 per 100 A05
6030004278 FI-DS-16S-W3 14 630 0.63
6030004279 FI-DS-20S-W3 16 630 10.5 0.69 0.68
6030004280 FI-DS-25S-W3 20 400 10.5 1.26 0.68
6030004281 FI-DS-30S-W3 25 400 12.5 1.52 0.83
6030004282 FI-DS-38S-W3 30 400 12.5 2.06 1.07
38 400 13.5 2.54 1.35
13.5 1.84

HYDRAULIC PIPEWORK, COMPONENTS & ACCESSORIES

129
