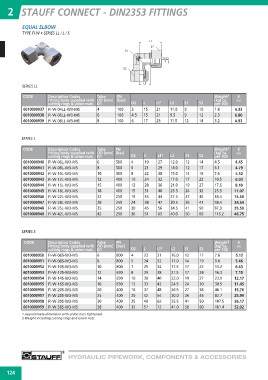

Page 130 - floMAX Catalogue 2016
P. 130
2 STAUFF CONNECT - DIN2353 FITTINGS
EQUAL ELBOW
TYPE FI-W • SERIES LL / L / S
L1
S2
S1
D2
D1
S2
SERIES LL L2
CODE Description Codes Tube PN L Weight2 €
Fitting body supplied with OD [mm] [bar] D2 L L11 L2 S1 S2 [kg] ca. A05
cutting rings & union nuts D1 per 100
6010000937 FI-W-04LL-W3-MS 4 100 3 15 21 11.0 9 10 1.8 4.33
6010000938 FI-W-06LL-W3-MS 6 100 4.5 15 21 9.5 9 12 2.3 6.80
6010000939 FI-W-08LL-W3-MS 8 100 6 17 23 11.5 12 14 3.2 4.93
SERIES L
CODE Description Codes Tube PN Weight2 €
Fitting body supplied with OD [mm] [bar] [kg] ca.
cutting rings & union nuts D1 D2 L L11 L2 S1 S2 per 100 A05
4.5
6010000940 FI-W-06L-W3-MS 6 500 4 19 27 12.0 12 14 6.1 4.45
7.6 4.79
6010000941 FI-W-08L-W3-MS 8 500 6 21 29 14.0 12 17 10.5 5.12
17.6 6.03
6010000942 FI-W-10L-W3-MS 10 500 8 22 30 15.0 14 19 25.9 8.10
34.4 11.07
6010000943 FI-W-12L-W3-MS 12 400 10 24 32 17.0 17 22 58.4 15.50
87.3 24.54
6010000944 FI-W-15L-W3-MS 15 400 12 28 36 21.0 19 27 115.2 35.50
46.75
6010000945 FI-W-18L-W3-MS 18 400 15 31 40 23.5 24 32
6010000946 FI-W-22L-W3-MS 22 250 19 35 44 27.5 27 36
6010000947 FI-W-28L-W3-MS 28 250 24 38 47 30.5 36 41
6010000948 FI-W-35L-W3-MS 35 250 30 45 56 34.5 41 50
6010000949 FI-W-42L-W3-MS 42 250 36 51 63 40.0 50 60
SERIES S
CODE Description Codes Tube PN Weight2 €
Fitting body supplied with OD [mm] [bar] [kg] ca.
cutting rings & union nuts D1 D2 L L11 L2 S1 S2 per 100 A05
6010000950 FI-W-06S-W3-MS 6 800 4 23 31 16.0 12 17 7.6 5.12
6010000951 FI-W-08S-W3-MS 8 800 5 24 32 17.0 14 19 9.6 5.46
6010000952 FI-W-10S-W3-MS 10 800 7 25 34 17.5 17 22 13.2 6.43
6010000953 FI-W-12S-W3-MS 12 630 8 29 38 21.5 17 24 16.3 7.15
6010000954 FI-W-14S-W3-MS 14 630 10 30 40 22.0 19 27 23.9 12.17
6010000955 FI-W-16S-W3-MS 16 630 12 33 43 24.5 24 30 30.5 11.45
6010000956 FI-W-20S-W3-MS 20 400 16 37 48 26.5 27 36 46.1 15.76
6010000957 FI-W-25S-W3-MS 25 400 20 42 54 30.0 36 46 82.7 25.99
6010000958 FI-W-30S-W3-MS 30 400 25 49 62 35.5 41 50 107.5 36.17
6010000959 FI-W-38S-W3-MS 38 400 32 57 72 41.0 50 60 161.4 52.02
1 Approximate dimension with union nuts tightened.
2 Weight including cutting rings and union nuts.
HYDRAULIC PIPEWORK, COMPONENTS & ACCESSORIES
