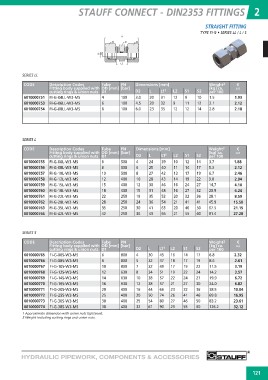

STAUFF CONNECT - DIN2353 FITTINGS 2

STRAIGHT FITTING

TYPE FI-G • SERIES LL / L / S

L1 S2
S2 S1

D1
D2

L2

SERIES LL L

CODE Description Codes Tube PN Dimensions [mm] Weight2 €
Fitting body supplied with OD [mm] [bar] [kg] ca.
cutting rings & union nuts D1 D2 L L11 L2 S1 S2 per 100 A05

6010000751 FI-G-04LL-W3-MS 4 100 3.0 20 31 12 9 10 1.5 1.93
2.12
6010000753 FI-G-06LL-W3-MS 6 100 4.5 20 32 9 11 12 2.1 2.18

6010000754 FI-G-08LL-W3-MS 8 100 6.0 23 35 12 12 14 2.8

SERIES L

CODE Description Codes Tube PN Dimensions [mm] Weight2 €
Fitting body supplied with OD [mm] [bar] [kg] ca.
cutting rings & union nuts D1 D2 L L11 L2 S1 S2 per 100 A05

6010000755 FI-G-06L-W3-MS 6 500 4 24 39 10 12 14 3.7 1.88
2.12
6010000756 FI-G-08L-W3-MS 8 500 6 25 40 11 14 17 5.3 2.46
2.94
6010000757 FI-G-10L-W3-MS 10 500 8 27 42 13 17 19 6.7 4.10
6.24
6010000758 FI-G-12L-W3-MS 12 400 10 28 43 14 19 22 9.0 8.59
15.50
6010000759 FI-G-15L-W3-MS 15 400 12 30 46 16 24 27 14,7 21.15
27.28
6010000760 FI-G-18L-W3-MS 18 400 15 31 48 16 27 32 20.9

6010000761 FI-G-22L-W3-MS 22 250 19 35 52 20 32 36 28.1

6010000762 FI-G-28L-W3-MS 28 250 24 36 54 21 41 41 45.9

6010000763 FI-G-35L-W3-MS 35 250 30 41 63 20 46 50 67.5

6010000764 FI-G-42L-W3-MS 42 250 36 43 66 21 55 60 81.4

SERIES S

CODE Description Codes Tube PN Weight2 €
Fitting body supplied with OD [mm] [bar] [kg] ca.
cutting rings & union nuts D1 D2 L L11 L2 S1 S2 per 100 A05

6010000765 FI-G-06S-W3-MS 6 800 4 30 45 16 14 17 6.8 2.32

6010000766 FI-G-08S-W3-MS 8 800 5 32 47 18 17 19 8.6 2.61

6010000767 FI-G-10S-W3-MS 10 800 7 32 49 17 19 22 11.5 3.19

6010000768 FI-G-12S-W3-MS 12 630 8 34 51 19 22 24 14.2 3.57

6010000769 FI-G-14S-W3-MS 14 630 10 38 57 22 24 27 19.9 6.72

6010000770 FI-G-16S-W3-MS 16 630 12 38 57 21 27 30 24.0 6.82

6010000771 FI-G-20S-W3-MS 20 400 16 44 66 23 32 36 38.5 10.04

6010000772 FI-G-25S-W3-MS 25 400 20 50 74 26 41 46 69.8 16.95

6010000773 FI-G-30S-W3-MS 30 400 25 54 80 27 46 50 83.2 23.61

6010000774 FI-G-38S-W3-MS 38 400 32 61 90 29 55 60 126.2 32.12

1 Approximate dimension with union nuts tightened.
2 Weight including cutting rings and union nuts.

HYDRAULIC PIPEWORK, COMPONENTS & ACCESSORIES
