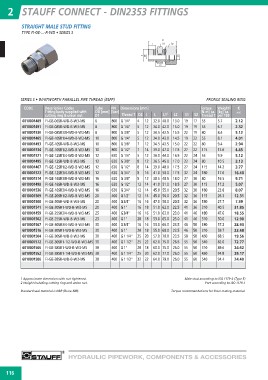

Page 122 - floMAX Catalogue 2016
P. 122
2 STAUFF CONNECT - DIN2353 FITTINGS
STRAIGHT MALE STUD FITTING
TYPE FI-GE-...-R-WD • SERIES S
L1
i S1 S2
T
D2
D1
L2
L
SERIES S • WHITWORTH PARALLEL PIPE THREAD (BSPP) PROFILE SEALING RING
CODE Description Codes Tube PN Dimensions [mm] Torque Weight2 €
Fitting body supplied with OD [mm] [bar] [N·m] ca. [kg] ca.
cutting ring & union nut D1 Thread T D2 i L L11 L2 S1 S2 Thread T per 100 A05
6010001489 FI-GE-06SR-WD-B-W3-MS 6 800 G 1/4" 4 12 32.0 40.0 13.0 19 17 55 5.7 2.12
6010001491 FI-GE-08SR-WD-B-W3-MS 8 800 G 1/4" 5 12 34.0 42.0 15.0 19 19 55 6.7 2.32
6010001520 FI-GE-08SR3/8-WD-B-W3-MS 8 800 G 3/8" 5 12 34.5 42.5 15.5 22 19 80 8.4 5.12
6010001465 FI-GE-10SR1/4-WD-B-W3-MS 10 800 G 1/4" 5 12 34.0 43.0 14.5 19 22 55 8.1 4.01
6010001493 FI-GE-10SR-WD-B-W3-MS 10 800 G 3/8" 7 12 34.5 43.5 15.0 22 22 80 9.4 2.94
6010001534 FI-GE-10SR1/2-WD-B-W3-MS 10 800 G 1/2" 7 14 39.0 47.0 17.5 27 22 115 13.6 4.45
6010001521 FI-GE-12SR1/4-WD-B-W3-MS 12 630 G 1/4" 5 12 36.0 44.0 16.5 22 24 55 9.9 5.12
6010001495 FI-GE-12SR-WD-B-W3-MS 12 630 G 3/8" 8 12 36.5 45.0 17.0 22 24 80 10.5 3.13
6010001467 FI-GE-12SR1/2-WD-B-W3-MS 12 630 G 1/2" 8 14 39.0 48.0 17.5 27 24 115 14.2 3.77
6010001523 FI-GE-12SR3/4-WD-B-W3-MS 12 630 G 3/4" 8 16 41.0 50.0 17.5 32 24 180 17.6 16.40
6010001514 FI-GE-16SR3/8-WD-B-W3-MS 16 630 G 3/8" 8 12 38.5 48.5 18.0 27 30 80 16.5 9.71
6010001498 FI-GE-16SR-WD-B-W3-MS 16 630 G 1/2" 12 14 41.0 51.0 18.5 27 30 115 17.2 5.07
6010001536 FI-GE-16SR3/4-WD-B-W3-MS 16 630 G 3/4" 12 14 45.0 55.0 20.5 32 30 180 23.8 8.07
6010001509 FI-GE-20SR1/2-WD-B-W3-MS 20 400 G 1/2" 12 14 45.0 56.0 20.5 32 36 115 26.3 12.31
6010001500 FI-GE-20SR-WD-B-W3-MS 20 400 G 3/4" 16 16 47.0 58.0 20.5 32 36 180 27.7 7.39
6010001541 FI-GE-20SR1-WD-B-W3-MS 20 400 G 1" 16 18 51.0 62.0 22.5 41 36 310 40.5 31.85
6010001459 FI-GE-25SR3/4-WD-B-W3-MS 25 400 G 3/4" 16 16 51.0 63.0 23.0 41 46 180 47.6 18.55
6010001502 FI-GE-25SR-WD-B-W3-MS 25 400 G 1" 20 18 53.0 65.0 23.0 41 46 310 50.0 12.90
6010001567 FI-GE-30SR3/4-WD-B-W3-MS 30 400 G 3/4" 16 16 53.0 66.0 23.5 46 50 180 57.2 28.93
6010001516 FI-GE-30SR1-WD-B-W3-MS 30 400 G 1" 20 18 55.0 68.0 23.5 46 50 310 59.7 23.48
6010001504 FI-GE-30SR-WD-B-W3-MS 30 400 G 1 1/4" 25 20 57.0 70.0 23.5 50 50 450 68.5 19.56
6010007572 FI-GE-30SR1-1/2-WD-B-W3-MS 30 400 G 1 1/2" 25 22 62.0 75.0 26.5 55 50 540 82.0 72.77
6010001566 FI-GE-38SR1-WD-B-W3-MS 38 400 G 1" 20 18 60.0 75.0 26.0 55 50 310 89.6 24.62
6010001552 FI-GE-38SR1-1/4-WD-B-W3-MS 38 400 G 1 1/4" 25 20 62.0 77.0 26.0 55 60 450 94.8 29.17
6010001506 FI-GE-38SR-WD-B-W3-MS 38 400 G 1 1/2" 32 22 64.0 79.0 26.0 55 60 540 94.4 24.40
1 Approximate dimension with nut tightened. Male stud according to ISO 1179-2 (Type E)
2 Weight including cutting ring and union nut. Port according to ISO 1179-1
Standard seal material is NBR (Buna-N®). Torque recommendations for Steel mating material.
