P. 121

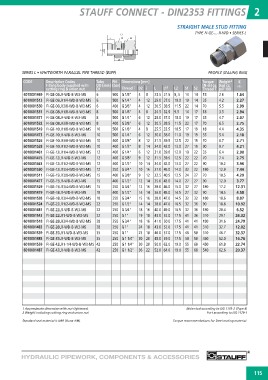

STAUFF CONNECT - DIN2353 FITTINGS 2
L1 STRAIGHT MALE STUD FITTING
i S1 S2
TYPE FI-GE-...-R-WD • SERIES L
T
D2
D1
L2
L
SERIES L • WHITWORTH PARALLEL PIPE THREAD (BSPP) PROFILE SEALING RING
CODE Description Codes Tube PN Dimensions [mm] Torque Weight2 €
Fitting body supplied with OD [mm] [bar] [N·m] ca. [kg] ca.
cutting ring & union nut D1 Thread T D2 i L L11 L2 S1 S2 Thread T per 100 A05
6010001469 FI-GE-06LR-WD-B-W3-MS 6 500 G 1/8" 4 8 23.5 31.5 8,.5 14 14 18 2.6 1.64
6010001513 FI-GE-06LR1/4-WD-B-W3-MS 6 500 G 1/4" 4 12 29.0 37.0 10.0 19 14 35 4.2 2.27
6010001550 FI-GE-06LR3/8-WD-B-W3-MS 6 400 G 3/8" 4 12 30.5 38.5 11.5 22 14 70 5.5 2.99
6010001531 FI-GE-08LR1/8-WD-B-W3-MS 8 500 G 1/8" 4 8 24.5 32.5 9.5 14 17 18 3.5 2.94
6010001471 FI-GE-08LR-WD-B-W3-MS 8 500 G 1/4" 6 12 29.0 37.0 10.0 19 17 35 4.7 2.07
6010001532 FI-GE-08LR3/8-WD-B-W3-MS 8 400 G 3/8" 6 12 30.5 38.5 11.5 22 17 70 6.5 2.75
6010001549 FI-GE-10LR1/8-WD-B-W3-MS 10 500 G 1/8" 4 8 25.5 33.5 10.5 17 19 18 4.4 4.35
6010001473 FI-GE-10LR-WD-B-W3-MS 10 500 G 1/4" 6 12 30.0 38.0 11.0 19 19 35 5.4 2.18
6010001526 FI-GE-10LR3/8-WD-B-W3-MS 10 400 G 3/8" 8 12 31.5 39.5 12.5 22 19 70 6.7 2.71
6010001528 FI-GE-10LR1/2-WD-B-W3-MS 10 400 G 1/2" 8 14 34.0 42.0 13.0 27 19 90 9.7 4.21
6010001461 FI-GE-12LR1/4-WD-B-W3-MS 12 400 G 1/4" 6 12 31.0 39.0 12.0 19 22 35 6.4 2.90
6010001475 FI-GE-12LR-WD-B-W3-MS 12 400 G 3/8" 9 12 31.5 39.5 12.5 22 22 70 7.4 2.75
6010001463 FI-GE-12LR1/2-WD-B-W3-MS 12 400 G 1/2" 10 14 34.0 42.0 13.0 27 22 90 10.2 3.96
6010001530 FI-GE-12LR3/4-WD-B-W3-MS 12 250 G 3/4" 10 16 37.0 45.0 14.0 32 22 180 12.9 7.44
6010001511 FI-GE-15LR3/8-WD-B-W3-MS 15 400 G 3/8" 9 12 32.5 40.5 13.5 24 27 70 10.5 4.29
6010001477 FI-GE-15LR-WD-B-W3-MS 15 400 G 1/2" 12 14 35.0 43.0 14.0 27 27 90 12.0 3.77
6010001529 FI-GE-15LR3/4-WD-B-W3-MS 15 250 G 3/4" 12 16 38.0 46.0 15.0 32 27 180 17.2 12.31
6010001479 FI-GE-18LR-WD-B-W3-MS 18 400 G 1/2" 14 14 36.0 45.0 14.5 27 32 90 14.5 4.58
6010001538 FI-GE-18LR3/4-WD-B-W3-MS 18 250 G 3/4" 15 16 38.0 47.0 14.5 32 32 180 18.6 8.07
6010001524 FI-GE-22LR1/2-WD-B-W3-MS 22 250 G 1/2" 14 14 38.0 47.0 16.5 32 36 90 18.8 10.92
6010001481 FI-GE-22LR-WD-B-W3-MS 22 250 G 3/4" 18 16 40.0 49.0 16.5 32 36 180 20.4 6.52
6010001543 FI-GE-22LR1-WD-B-W3-MS 22 250 G 1" 19 18 43.0 52.0 17.5 41 36 310 29.1 26.32
6010001518 FI-GE-28LR3/4-WD-B-W3-MS 28 250 G 3/4" 18 16 41.0 50.0 17.5 41 41 180 31.6 24.79
6010001483 FI-GE-28LR-WD-B-W3-MS 28 250 G 1" 24 18 43.0 52.0 17.5 41 41 310 32.7 12.02
6010001539 FI-GE-35LR1-WD-B-W3-MS 35 250 G 1" 23 18 46.0 57.0 17.5 46 50 310 46.7 32.37
6010001485 FI-GE-35LR-WD-B-W3-MS 35 250 G 1 1/4" 30 20 48.0 59.0 17.5 50 50 450 52.0 16.76
6010001559 FI-GE-42LR1-1/4-WD-B-W3-MS 42 250 G 1 1/4" 30 20 50.0 62.0 19.0 55 60 450 61.8 22.74
6010001487 FI-GE-42LR-WD-B-W3-MS 42 250 G 1 1/2" 36 22 52.0 64.0 19.0 55 60 540 62.6 20.37
1 Approximate dimension with nut tightened. Male stud according to ISO 1179-2 (Type E)
2 Weight including cutting ring and union nut. Port according to ISO 1179-1
Standard seal material is NBR (Buna-N®). Torque recommendations for Steel mating material.
