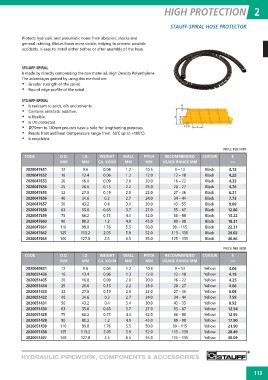

Page 119 - floMAX Catalogue 2016

HIGH PROTECTION 2

STAUFF-SPIRAL HOSE PROTECTOR

Protects hydraulic and pneumatic hoses from abrasion, shocks and
general rubbing. Makes hoses more visible, helping to prevent possible
accidents. Is easy to install either before or after assembly of the hose.

STUAFF-SPIRAL
Is made by directly compressing the raw material, High Density Polyethylene.
The advantages gained by using this method are:

• Greater strength of the sprial.
• Round edge profile of the spiral .

STUAFF-SPIRAL
• Is resistant to acids, oils and solvents.
• Contains antistatic additive.
• Is flexible.
• Is UV-protected.
• ø75mm to 140mm pre-cuts have a hole for lengthening purposes.
•
Resists frost and heat (temperature range from -50˚C up to +100˚C).
• Is recyclable.

PRICE PER MTR

CODE O.D. I.D. WEIGHT WALL PITCH RECOMMENDED COlOUR €

MM MM CA. KG/M MM MM USAGE RANGE MM A04

2020047651 12 9.6 0.04 1.2 10.5 9 – 13 Black 4.13
13 – 18 Black 4.25
2020047652 16 13.4 0.06 1.3 12.0 16 – 22 Black 4.33
20 – 27 Black 4.76
2020047653 20 16.0 0.09 2.0 20.0 27 – 36 Black 6.21
34 – 44 Black 7.73
2020047654 25 20.6 0.15 2.2 25.0 43 – 55 Black 9.09
55 – 67 Black 12.80
2020047655 32 27.0 0.19 2.5 22.0 66 – 80 Black 13.22
80 – 98 Black 18.21
2020047656 40 34.6 0.3 2.7 24.0 99 – 115 Black 22.31
113 – 130 Black 29.02
2020047657 50 43.2 0.4 3.4 30.0 125 – 155 Black 30.66

2020047658 63 55.6 0.65 3.7 27.0

2020047659 75 66.2 0.73 4.4 42.0

2020047660 90 80.2 1.2 4.9 45.0

2020047661 110 99.0 1.76 5.5 50.0

2020047662 125 113.2 2.05 5.9 52.0

2020047663 140 127.0 2.5 6.5 55.0

CODE O.D. I.D. WEIGHT WALL PITCH RECOMMENDED COlOUR PRICE PER MTR
MM MM CA. KG/M MM MM USAGE RANGE MM
2020049831 Yellow €
2020051436 12 9.6 0.04 1.2 10.5 9 – 13 Yellow
2020051435 16 13.4 0.06 1.3 12.0 13 – 18 Yellow A04
2020051434 20 16.0 0.09 2.0 20.0 16 – 22 Yellow
2020051433 25 20.6 0.15 2.2 25.0 20 – 27 Yellow 4.06
2020051432 32 27.0 0.19 2.5 22.0 27 – 36 Yellow 4.19
2020051431 40 34.6 0.3 2.7 24.0 34 – 44 Yellow 4.25
2020051430 50 43.2 0.4 3.4 30.0 43 – 55 Yellow 4.66
2020051429 63 55.6 0.65 3.7 27.0 55 – 67 Yellow 6.08
2020051428 75 66.2 0.73 4.4 42.0 66 – 80 Yellow 7.59
2020051439 90 80.2 1.2 4.9 45.0 80 – 98 Yellow 8.92
2020051438 110 99.0 1.76 5.5 50.0 99 – 115 Yellow 12.54
2020051437 125 113.2 2.05 5.9 52.0 113 – 130 Yellow 12.95
140 127.0 2.5 6.5 55.0 125 – 155 17.90
21.90
28.49
30.09
