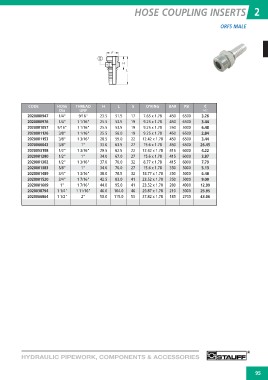

HOSE COUPLING INSERTS 2

ORFS MALE

CODE HOSE THREAD H L S O’RING BAR PSI €
Dia UNF
2020000947 1/4" 9/16" 23.5 51.5 17 7.65 x 1.78 450 6500 A02
2020000976 1/4" 25.5 53.5 19 9.25 x 1.78 450 6500
2020001057 5/16" 1 1/16" 25.5 53.5 19 9.25 x 1.78 350 5000 3.26
2020001126 3/8" 1 1/16" 25.5 56.0 19 9.25 x 1.78 450 6500 3.44
2020001153 3/8" 1 1/16" 28.5 59.0 22 12.42 x 1.78 450 6500 6.48
2020066043 3/8" 1 3/16" 33.0 63.5 27 15.6 x 1.78 450 6500 2.84
2020053198 1/2" 29.5 62.5 22 12.42 x 1.78 415 6000 3.44
2020001280 1/2" 1" 34.0 67.0 27 15.6 x 1.78 415 6000 26.45
2020001302 1/2" 1 3/16" 37.0 70.0 32 8.77 x 1.78 415 6000 4.22
2020001383 5/8" 34.0 70.0 27 15.6 x 1.78 350 5000 3.87
2020001489 3/4" 1" 38.0 78.5 32 18.77 x 1.78 350 5000 7.79
2020001520 3/4" 1 3/16" 42.5 83.0 41 23.52 x 1.78 350 5000 5.13
2020001609 1" 44.0 95.0 41 23.52 x 1.78 280 4000 6.48
2020038794 1" 46.0 104.0 46 29.87 x 1.78 210 3000 9.09
2020066864 1 1/4" 1 3/16" 50.0 115.0 55 37.82 x 1.78 185 2700 12.99
1 1/2" 1 7/16" 25.95
1 7/16" 43.06
1 11/16"

2"
