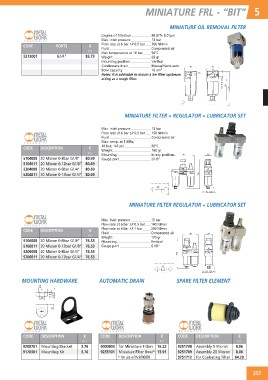

MINIATURE FRL - “BIT” 5

MINIATURE OIL REMOVAL FILTER

Degree of filtration 99.97% 0.01µm

Max. inlet pressure 13 bar

CODE PORTS € Flow rate at 6 bar ∆P 0.5 bar 700 NI/min
P11 Fluid Compressed air
Max temperature at 10 bar 50°C
5212001 G1/4” 83.73 Weight 65 gr

Mounting position Vertical

Condensate drain Manual/Semi-auto
Bowl capacity 16 cm3

Notes: It is advisable to mount a 5m filter upstream

acting as a rough filter.

MINIATURE FILTER + REGULATOR + LUBRICATOR SET

CODE DESCRIPTION € Max. inlet pressure 13 bar
Flow rate at 6 bar ∆P 0.5 bar 150 NI/min
P11 Fluid Compressed air
Max. temp. at 1 MPa;
5104008 20 Micron 0-8bar G1/8” 80.69 10 bar; 145 psi 50ºC
Weight 160 gr
Mounting in any position
Gauge port G1/8”

5104011 20 Micron 0-12bar G1/8” 80.69

5204008 20 Micron 0-8bar G1/4” 80.69

5204011 20 Micron 0-12bar G1/4” 80.69

MINIATURE FILTER REGULATOR + LUBRICATOR SET

Max. inlet pressure 13 bar

Flow rate at 6 bar ∆P 0.5 bar 140 NI/min
Flow rate at 6 bar ∆P 1 bar 260 NI/min
CODE DESCRIPTION € Fluid Compressed air

P11 Weight 170 gr

5106008 20 Micron 0-8bar G1/8” 76.53 Mounting Vertical

5106011 20 Micron 0-12bar G1/8” 76.53 Gauge port G1/8”

5206008 20 Micron 0-8bar G1/4” 76.53

5206011 20 Micron 0-12bar G1/4” 76.53

MOUNTING HARDWARE AUTOMATIC DRAIN SPARE FILTER ELEMENT

CODE DESCRIPTION € CODE DESCRIPTION € CODE DESCRIPTION €

P11 P11 P11
9200701 Mounting Bracket 9251708 Assembly 5 Micron
3.76 9000803 for Miniature Filters 16.22 8.06
9170301 Mounting Kit 3.76 9251709 Assembly 20 Micron 8.06
9255101 Miniature Filter Bowl* 15.91 64.20
9251712 for Coalescing Filter
* for use with 9000803

257
