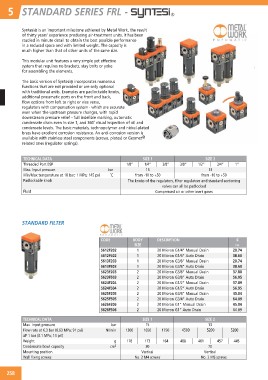

Page 264 - floMAX Catalogue 2016

5 STANDARD SERIES FRL -

Syntesi® is an important milestone achieved by Metal Work, the result
of thirty years’ experience producing air-treatment units. It has been
studied in minute detail to obtain the best possible performance
in a reduced space and with limited weight. The capacity is
much higher than that of other units of the same size.

This modular unit features a very simple yet effective
system that requires no brackets, stay bolts or yoke
for assembling the elements.

The basic version of Syntesi® incorporates numerous
functions that are not provided or are only optional
with traditional units. Examples are padlockable knobs,
additional pneumatic ports on the front and back,
flow options from left to right or vice versa,
regulators with compensation system - which are accurate
even when the upstream pressure changes, with rapid
downstream pressure relief - full indelible marking, automatic
condensate drain even in size 1, and 360˚ visual inspection of oil and
condensate levels. The basic materials, technopolymer and nickel-plated
brass have excellent corrosion resistance. An anti-corrosion version is
available with stainless steel components (screws, plates) or Geomet®
related ones (regulator springs).

TECHNICAL DATA SIZE 1 SIZE 2

Threaded Port BSP 1/8” 1/4” 3/8” 3/8” 1/2” 3/4” 1”

Max. input pressure bar 15 13

Min/Max temperature at 10 bar; 1 MPa; 145 psi ˚C from -10 to +50 from -10 to +50

Padlockable knob The knobs of the regulators, filter regulators and standard sectioning

valves can all be padlocked

Fluid Compressed air or other inert gases

STANDARD FILTER

CODE BODY DESCRIPTION €
SIZE
5612F202 P44
5612F502 1 20 Micron G1/4” Manual Drain
5613F203 1 20 Micron G1/4” Auto Drain 20.74
5613F503 1 20 Micron G3/8” Manual Drain 38.60
5623F203 1 20 Micron G3/8” Auto Drain 20.74
5623F503 2 20 Micron G3/8” Manual Drain 38.60
5624F204 2 20 Micron G3/8” Auto Drain 37.88
5624F504 2 20 Micron G1/2” Manual Drain 56.95
5625F205 2 20 Micron G1/2” Auto Drain 37.89
5625F505 2 20 Micron G3/4” Manual Drain 56.95
5626F206 2 20 Micron G3/4” Auto Drain 45.04
5626F506 2 20 Micron G1” Manual Drain 64.09
2 20 Micron G1” Auto Drain 45.04
64.09

TECHNICAL DATA SIZE 1 SIZE 2

Max. input pressure bar 15 13

Flow rate at 6.3 bar (0.63 MPa; 91 psi) NI/min 1300 1650 1750 4500 5200 5200

∆P 1 bar (0.1 MPa; 14 psi)

Weight g 178 173 164 488 461 457 445

Condensate bowl capacity cm3 30 70

Mounting position Vertical Vertical

Wall fixing screws No. 2 M4 screws No. 2 M5 screws

258
