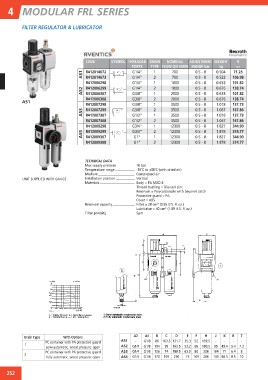

Page 258 - floMAX Catalogue 2016

4 MODULAR FRL SERIES

FILTER REGULATOR & LUBRICATOR

CODE SYMBOL THREADED DRAIN NOMINAL ADJUSTMENT WEIGHT €

PORTS TYPE FLOW QN I/MIN RANGE bar kg X01

AS5 AS3 AS2 AS1 R412014672 G1/4” 1 700 0.5 - 8 0.504 71.25

R412014673 G1/4” 2 700 0.5 - 8 0.522 106.98

R412006298 G1/4” 1 1800 0.5 - 8 0.633 101.82

R412006299 G1/4” 2 1800 0.5 - 8 0.676 138.74

R412006307 G3/8” 1 2000 0.5 - 8 0.633 101.82

AS1 R412006308 G3/8” 2 2000 0.5 - 8 0.676 138.74

UNIT SUPPLIED WITH GAUGE R412007298 G3/8” 1 3500 0.5 - 8 1.018 137.73

R412007299 G3/8” 2 3500 0.5 - 8 1.067 167.86

R412007307 G1/2” 1 3500 0.5 - 8 1.018 137.73

R412007308 G1/2” 2 3500 0.5 - 8 1.067 167.86

R412009298 G3/4” 1 12300 0.5 - 8 1.827 344.90

R412009299 G3/4” 2 12300 0.5 - 8 1.878 374.77

R412009307 G1” 1 12300 0.5 - 8 1.827 344.90

R412009308 G1” 2 12300 0.5 - 8 1.878 374.77

TECHNICAL DATA 16 bar
Max supply pressure -10˚C to +50˚C (with dried air)
Temperature range Compressed air
Medium Vertical
Installation position Body = PA MXD 6
Materials Thread bushing = Die-cast zinc
Reservoir = Polycarbonate with bayonet catch
Protective guard = PA
Cover = ABS
Filter = 28 cm3 (0.95 U.S. Fl.oz.)
Reservoir capacity Lubricator = 40 cm3 (1.69 U.S. Fl.oz.)
5µm
Filter porosity

Drain Type With Options A2 A4 B C D E F H J K R T
1 PC container with PA protective guard AS1 - G1/8 86 163.5 131.7 35.3 52 159.5 - - - -
2 semi-automatic, w/out pressure: open AS2 G1/4 G1/8 104 59 163.5 53.2 65 180.5 95 49.4 5.4 7.3
PC container with PA protective guard
fully automatic, w/out pressure: open AS3 G1/4 G1/8 126 74 189.5 63.5 80 206 104 71 6.4 8
AS4 G1/4 G1/8 170 103 250 75 109 266 140 86.5 8.5 10
