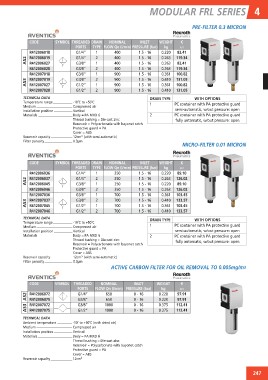

MODULAR FRL SERIES 4

PRE-FILTER 0.3 MICRON

CODE SYMBOL THREADED DRAIN NOMINAL INLET WEIGHT €

PORTS TYPE FLOW Qn (I/min) PRESSURE (bar) kg X01

R412006018 G1/4” 1 400 1.5 - 16 0.220 82.41

AS3 AS2 R412006019 G1/4” 2 400 1.5 - 16 0.263 119.34

R412006027 G3/8” 1 400 1.5 - 16 0.263 82.41

R412006028 G3/8” 2 400 1.5 - 16 0.263 119.34

R412007018 G3/8” 1 900 1.5 - 16 0.361 100.82

R412007019 G3/8” 2 900 1.5 - 16 0.410 131.05

R412007027 G1/2” 1 900 1.5 - 16 0.361 100.82

R412007028 G1/2” 2 900 1.5 - 16 0.410 131.05

TECHNICAL DATA -10˚C to +50˚C DRAIN TYPE WITH OPTIONS
Temperature range Compressed air
Medium Vertical 1 PC container with PA protective guard
Installation position Body = PA MXD 6
Materials Thread bushing = Die-cast zinc semi-automatic, w/out pressure: open
Reservoir = Polycarbonate with bayonet catch
Protective guard = PA 2 PC container with PA protective guard
Cover = ABS
12cm3 (with semi-automatic) fully automatic, w/out pressure: open
Reservoir capacity 0.3µm
Filter porosity MICRO-FILTER 0.01 MICRON

CODE SYMBOL THREADED DRAIN NOMINAL INLET WEIGHT €

PORTS TYPE FLOW Qn (I/min) PRESSURE (bar) kg X01

R412006036 G1/4” 1 350 1.5 - 16 0.220 89.10

AS3 AS2 R412006037 G1/4” 2 350 1.5 - 16 0.263 126.02

R412006045 G3/8” 1 350 1.5 - 16 0.220 89.10

R412006046 G3/8” 2 350 1.5 - 16 0.263 126.02

R412007036 G3/8” 1 700 1.5 - 16 0.361 103.45

R412007037 G3/8” 2 700 1.5 - 16 0.410 133.57

R412007045 G1/2” 1 700 1.5 - 16 0.361 103.45

R412007046 G1/2” 2 700 1.5 - 16 0.410 133.57

TECHNICAL DATA -10˚C to +50˚C DRAIN TYPE WITH OPTIONS
Temperature range Compressed air
Medium Vertical 1 PC container with PA protective guard
Installation position
Materials semi-automatic, w/out pressure: open

Body = PA MXD 6 2 PC container with PA protective guard
Thread bushing = Die-cast zinc fully automatic, w/out pressure: open
Reservoir = Polycarbonate with bayonet catch
Reservoir capacity
Filter porosity Protective guard = PA

Cover = ABS

12cm3 (with semi-automatic)

0.3µm

ACTIVE CARBON FILTER FOR OIL REMOVAL TO 0.005mg/m3

CODE SYMBOL THREADED NOMINAL INLET WEIGHT €
kg X01
PORTS FLOW Qn (I/min) PRESSURE (bar)
0.220 97.91
AS3 AS2 R412006072 G1/4” 650 0 - 16
0.220 97.91
R412006075 G3/8” 650 0 - 16
0.375 112.41
R412007072 G3/8” 1000 0 - 16
0.375 112.41
R412007075 G1/2” 1000 0 - 16

TECHNICAL DATA -10˚ to +50˚C (with dried air)
Ambient temperature Compressed air
Medium Vertical
Installation position Body = PA MXD 6
Materials Thread bushing = Die-cast zinc
Reservoir = Polycarbonate with bayonet catch
Protective guard = PA
Cover = ABS
12cm3
Reservoir capacity
