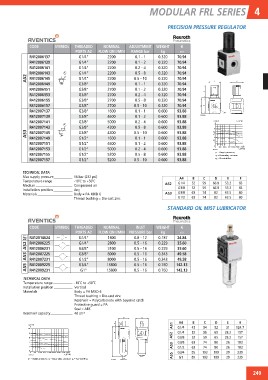

Page 255 - floMAX Catalogue 2016

MODULAR FRL SERIES 4

PRECISION PRESSURE REGULATOR

CODE SYMBOL THREADED NOMINAL ADJUSTMENT WEIGHT €

PORTS A2 FLOW QN I/MIN RANGE bar kg X01

R412006137 G1/4” 2200 0.1 - 1 0.320 70.94
70.94
R412006139 G1/4” 2200 0.1 - 2 0.320 70.94
70.94
R412006141 G1/4” 2200 0.2 - 4 0.320 70.94
70.94
AS3 AS2 R412006143 G1/4” 2200 0.5 - 8 0.320 70.94
70.94
R412006145 G1/4” 2200 0.5 - 10 0.320 70.94
70.94
R412006149 G3/8” 2700 0.1 - 1 0.320 93.88
93.88
R412006151 G3/8” 2700 0.1 - 2 0.320 93.88
93.88
R412006153 G3/8” 2700 0.2 - 4 0.320 93.88
93.88
R412006155 G3/8” 2700 0.5 - 8 0.320 93.88
93.88
R412006157 G3/8” 2700 0.5 - 10 0.320 93.88
93.88
R412007137 G3/8” 1600 0.1 - 1 0.600

R412007139 G3/8” 4600 0.1 - 2 0.600

R412007141 G3/8” 5000 0.2 - 4 0.600

R412007143 G3/8” 4300 0.5 - 8 0.600

R412007145 G3/8” 4300 0.5 - 10 0.600

R412007149 G1/2” 1600 0.1 - 1 0.600

R412007151 G1/2” 4600 0.1 - 2 0.600

R412007153 G1/2” 5000 0.2 - 4 0.600

R412007155 G1/2” 5200 0.5 - 8 0.600

R412007157 G1/2” 5200 0.5 - 10 0.600

TECHNICAL DATA 16 bar (232 psi) A4 B C D E F
Max supply pressure -10˚C to +50˚C AS2 G1/4 52 59 66.8 53.2 65
Temperature range Compressed air 65
Medium Any G3/8 52 59 66.8 53.2 80
Installation position Body = PA MXD 6 AS3 G3/8 63 74 82 63.5 80
Materials Thread bushing = Die-cast zinc
G1/2 63 74 82 63.5

STANDARD OIL MIST LUBRICATOR

CODE SYMBOL THREADED NOMINAL INLET WEIGHT €

PORTS A2 FLOW QN I/MIN PRESSURE bar kg X01

AS5 AS3 AS2 AS1 R412014624 G1/4” 1400 0.8 - 12 0.187 24.84

R412006225 G1/4” 2800 0.5 - 16 0.229 35.60

R412006231 G3/8” 3100 0.5 - 16 0.229 35.60

R412007225 G3/8” 8000 0.5 - 16 0.343 49.58

R412007231 G1/2” 8000 0.5 - 16 0.343 49.58

R412009225 G3/4” 15800 0.5 - 16 0.760 142.13

R412009231 G1” 15800 0.5 - 16 0.760 142.13

TECHNICAL DATA -10˚C to +50˚C
Temperature range Vertical
Installation position Body = PA MXD 6
Materials Thread bushing = Die-cast zinc
Reservoir = Polycarbonate with bayonet catch
Protective guard = PA
Seal = ABS
40 cm3
Reservoir capacity

AS5 AS3 AS2 AS1 A4 B C D E H
G1/4 43 54 52 31 124.7
G1/4 52 59 65 28.2 157
G3/8 52 59 65 28.2 157
G3/8 63 74 80 26 183
G1/2 63 74 80 26 183
G3/4 85 103 109 29 239
G1 85 103 109 29 239

249
