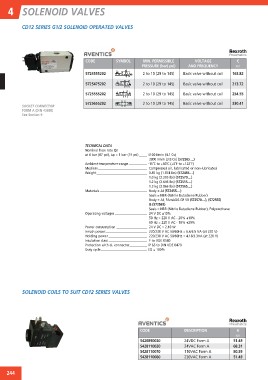

Page 250 - floMAX Catalogue 2016

4 SOLENOID VALVES

CD12 SERIES G1/2 SOLENOID OPERATED VALVES

CODE SYMBOL MIN. PERMISSIBLE VOLTAGE €
PRESSURE (bar) psi) AND FREQUENCY
X01
Basic valve without coil
5724555202 2 to 10 (29 to 145) 163.82

5725475202 2 to 10 (29 to 145) Basic valve without coil 213.72

SOCKET CONNECTOR 5725555202 2 to 10 (29 to 145) Basic valve without coil 254.55
FORM A (DIN 43650) 5725655202 2 to 10 (29 to 145) Basic valve without coil 330.41
See Section 9

TECHNICAL DATA

Nominal flow rate Qn

at 6 bar (87 psi), ∆p = 1 bar (15 psi) 4100 I/min (4.1 Cv)

3800 I/min (3.8 Cv) (572565....)

Ambient temperature range -15˚C to +50˚C (+5˚F to +122˚F)

Medium Compressed air, lubricated or non-lubricated

Weight 0.85 kg (1.874 Ibs) (572455....)

1.0 kg (2.205 Ibs) (572570....)

1.2 kg (2.646 Ibs) (572555....)

1.3 kg (2.866 Ibs) (572565....)

Materials Body = AI (572455....)

Seals = NBR (Nitrile Butadiene Rubber)

Body = AI, PAmAD6-GF 50 (572570....), (572555)

& (572565)

Seals = NBR (Nitrile Butadiene Rubber), Polyurethane

Operating voltages 24 V DC ±10%

50 Hz = 220 V AC - 20% +10%

60 Hz = 220 V AC - 10% +20%

Power consumption 24 V DC = 2.10 W

Inrush power 220/230 V AC 50/60Hz = 6.6/5.5 VA (at 220 V)

Holding power 220/230 V AC 50/60Hz = 4.18/3.3VA (at 220 V)

Insulation class F to VDE 0580

Protection with el. connector IP 65 to DIN VDE 0470

Duty cycle ED = 100%

SOLENOID COILS TO SUIT CD12 SERIES VALVES

CODE DESCRIPTION €

X01

5420890020 24VDC Form A 51.49

5428110020 24VAC Form A 68.31

5428110070 110VAC Form A 80.59

5428110080 230VAC Form A 51.49

244
