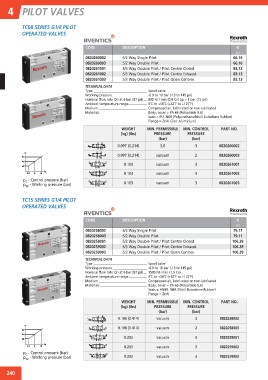

4 PILOT VALVES

TC08 SERIES G1/8 PILOT
OPERATED VALVES

CODE DESCRIPTION €

X01

0820260002 5/2 Way Single Pilot 66.16
66.16
0820260003 5/2 Way Double Pilot 83.13
83.13
0820261001 5/3 Way Double Pilot / Pilot Centre Closed 83.13

0820261002 5/3 Way Double Pilot / Pilot Centre Exhaust

0820261003 5/3 Way Double Pilot / Pilot Open Centres

TECHNICAL DATA Spool valve
Type -0.9 to 10 bar (-13 to 145 psi)
Working pressure 800 NI / min (0.8 Cv) ∆p = 1 bar (15 psi)
Nominal flow rate Qn at 6 bar (87 psi) 0˚C to +50˚C (+32˚F to +122˚F)
Ambient temperature range Compressed air, lubricated or non-lubricated
Medium Body, cover = PA 66 (Polyamide 6.6)
Materials Seals = PU, NBR (Polyurethane/Nitril Butadiene Rubber)
Flange = ZnAI (Zinc Aluminium)

WEIGHT MIN. PERMISSIBLE MIN. CONTROL PART NO.
(kg) (Ibs)
PRESSURE PRESSURE

(bar) (bar)

0.097 (0.214) 3.0 3 0820260002

0.097 (0.214) vacuum 2 0820260003

0.103 vacuum 3 0820261001

0.103 vacuum 3 0820261002

ppcw--CWonotrrkoilnpgrpersesussruer(eba(bra) r) 0.103 vacuum 3 0820261003

TC15 SERIES G1/4 PILOT
OPERATED VALVES

CODE DESCRIPTION €

X01

0820258002 5/2 Way Single Pilot 79.11
79.11
0820258003 5/2 Way Double Pilot 106.39
106.39
0820259001 5/3 Way Double Pilot / Pilot Centre Closed 106.39

0820259002 5/3 Way Double Pilot / Pilot Centre Exhaust

0820259003 5/3 Way Double Pilot / Pilot Open Centres

TECHNICAL DATA Spool valve
Type -0.9 to 10 bar (-13 to 145 psi)
Working pressure 1500 NI / min (1.5 Cv)
Nominal flow rate Qn at 6 bar (87 psi) 0˚C to +50˚C (+32˚F to +122˚F)
Ambient temperature range Compressed air, lubricated or non-lubricated
Medium Body, cover = PA 66 (Polyamide 6.6)
Materials Seals = HNBR, NBR (Nitril Butadiene Rubber)
Flange = ZnAI

WEIGHT MIN. PERMISSIBLE MIN. CONTROL PART NO.
(kg) (Ibs)
PRESSURE PRESSURE

(bar) (bar)

0.188 (0.414) vacuum 3 0820258002

0.188 (0.414) vacuum 2 0820258003

0.203 vacuum 3 0820259001

0.203 vacuum 3 0820259002

ppcw--CWonotrrkoilnpgrpersesussruer(eba(bra) r)

0.203 vacuum 3 0820259003
