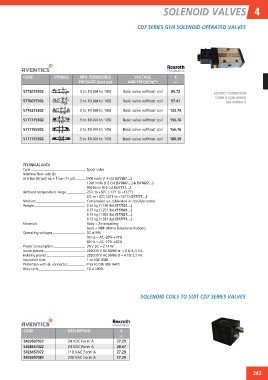

SOLENOID VALVES 4

CD7 SERIES G1/4 SOLENOID OPERATED VALVES

CODE SYMBOL MIN. PERMISSIBLE VOLTAGE €
PRESSURE (bar) psi) AND FREQUENCY
X01

5772075302 3 to 10 (44 to 145) Basic valve without coil 89.72 SOCKET CONNECTOR
FORM A (DIN 43650)
5776075302 3 to 10 (44 to 145) Basic valve without coil 97.41
See Section 9

5776275302 3 to 10 (44 to 145) Basic valve without coil 123.74

5777775302 3 to 10 (44 to 145) Basic valve without coil 156.76

5777765302 3 to 10 (44 to 145) Basic valve without coil 156.76

5777755302 3 to 10 (44 to 145) Basic valve without coil 180.58

TECHNICAL DATA

Type Spool valve

Nominal flow rate Qn

at 6 bar (87 psi) ∆p + 1 bar (15 psi) 1400 I/min (1.4 Cv) (577207....)

1200 I/min (1.2 Cv) (577607....) & (577627....)

900 I/min (0.9 Cv) (577777....)

Ambient temperature range -25˚C to +50˚C (-13˚F to +122˚F)

0˚C to +50˚C (32˚F to +122˚F) (577777....)

Medium Compressed air, lubricated or non-lubricated

Weight 0.54 kg (1.190 Ibs) (577207....)

0.57 kg (1.257 Ibs) (577607....)

0.75 kg (1.653 Ibs) (577627....)

0.72 kg (1.587 Ibs) (577777....)

Materials Body = Zn-diecasting

Seals = NBR (Nitrile Butadiene Rubber)

Operating voltages DC ±10%

50 Hz = AC -20% +10%

60 Hz = AC -10% +20%

Power consumption 24 V DC = 2.14 W

Inrush power 220/230 V AC 50/60Hz -= 6.6/ 5,.5 VA

Holding power 220/230 V AC 50/60Hz = 4.18/ 3.3 VA

Insulation class F to VDE 0580

Protection with el. connector IP 65 to DIN VDE 0470

Duty cycle ED = 100%

SOLENOID COILS TO SUIT CD7 SERIES VALVES

CODE DESCRIPTION €

X01

5420507022 24 VDC Form A 27.29

5428457022 24 VAC Form A 28.67

5428457072 110 VAC Form A 27.29

5428457082 230 VAC Form A 27.29
