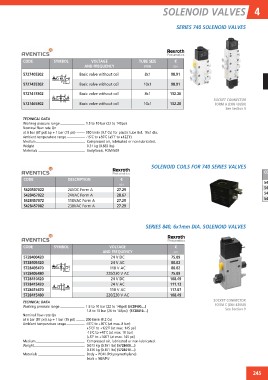

Page 251 - floMAX Catalogue 2016

SOLENOID VALVES 4

SERIES 740 SOLENOID VALVES

CODE SYMBOL VOLTAGE TUBE SIZE €
AND FREQUENCY mm
8x1 X01

5727405302 Basic valve without coil 10x1 98.91

5727455302 Basic valve without coil 8x1 98.91
132.20
5727415302 Basic valve without coil 10x1
132.20
5727465302 Basic valve without coil SOCKET CONNECTOR
FORM A (DIN 43650)

See Section 9

TECHNICAL DATA

Working pressure range 1.5 to 10 bar (22 to 145psi)

Nominal flow rate Qn

at 6 bar (87 psi) ∆p + 1 bar (15 psi) 950 I/min (0.7 Cv) for plastic tube 8x1, 10x1 dia.

Ambient temperature range -15˚C to +50˚C (+5˚F to +122˚F)

Medium Compressed air, lubricated or non-lubricated.

Weight 0.31 kg (0.683 lbs)

Materials Body/Seals, POM/NBR

SOLENOID COILS FOR 740 SERIES VALVES CO

CODE DESCRIPTION € 54
54
X01 54
54
5420507022 24VDC Form A 27.29

5428457022 24VAC Form A 28.67

5428457072 110VAC Form A 27.29

5428457082 230VAC Form A 27.29

SERIES 840, 6x1mm DIA. SOLENOID VALVES

CODE SYMBOL VOLTAGE €

AND FREQUENCY X01

5728400420 24 V DC 75.09
80.02
5728405420 24 V AC 80.02
75.09
5728405470 110 V AC 108.49
111.13
5728405480 220/230 V AC 117.07
108.49
5728410420 24 V DC

5728415420 24 V AC

5728415470 110 V AC

5728415480 220/230 V AC

TECHNICAL DATA SOCKET CONNECTOR
FORM C (DIN 43650)
Working pressure range 1.5 to 10 bar (22 to 145psi) (5728400....)
See Section 9
1.8 to 10 bar (26 to 145psi) (5728410....)
245
Nominal flow rate Qn

at 6 bar (87 psi) ∆p + 1 bar (15 psi) 200 I/min (0.2 Cv)

Ambient temperature range -15˚C to +50˚C (at max. 8 bar)

+5˚CF to +122˚F (at max. 145 psi)

-15˚C to +40˚C (at max. 10 bar)

(+5˚F to +140˚F (at max. 145 psi)

Medium Compressed air, lubricated or non-lubricated.

Weight 0.073 kg (0.161 lbs) (5728400....)

0.135 kg (0.161 lbs) (5728410....)

Materials Body = POM (Polyoxymethylene)

Seals = NBR/PU
