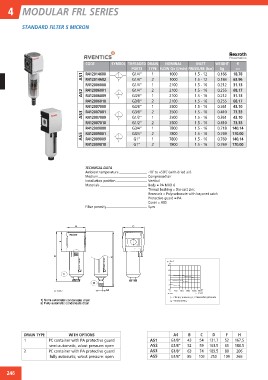

Page 252 - floMAX Catalogue 2016

4 MODULAR FRL SERIES

STANDARD FILTER 5 MICRON

CODE SYMBOL THREADED DRAIN NOMINAL INLET WEIGHT €

PORTS TYPE FLOW Qn (I/min) PRESSURE (bar) kg X01

AS5 AS3 AS2 AS1 R412014600 G1/4” 1 1000 1.5 - 12 0.166 18.78

R412014602 G1/4” 2 1000 1.5 - 12 0.184 63.96

R412006000 G1/4” 1 2100 1.5 - 16 0.212 31.13

R412006001 G1/4” 2 2100 1.5 - 16 0.255 68.17

R412006009 G3/8” 1 2100 1.5 - 16 0.212 31.13

R412006010 G3/8” 2 2100 1.5 - 16 0.255 68.17

R412007000 G3/8” 1 3500 1.5 - 16 0.361 43.10

R412007001 G3/8” 2 3500 1.5 - 16 0.410 73.33

R412007009 G1/2” 1 3500 1.5 - 16 0.361 43.10

R412007010 G1/2” 2 3500 1.5 - 16 0.410 73.33

R412009000 G3/4” 1 7800 1.5 - 16 0.718 140.14

R412009001 G3/4” 2 7800 1.5 - 16 0.769 170.00

R412009009 G1” 1 7800 1.5 - 16 0.769 140.14

R412009010 G1” 2 7800 1.5 - 16 0.769 170.00

TECHNICAL DATA -10˚ to +50˚C (with dried air)
Ambient temperature Compressed air
Medium Vertical
Installation position Body = PA MXD 6
Materials Thread bushing = Die-cast zinc
Reservoir = Polycarbonate with bayonet catch
Protective guard = PA
Cover = ABS
5µm
Filter porosity

DRAIN TYPE WITH OPTIONS A4 B C D F H

1 PC container with PA protective guard AS1 G1/8” 43 54 131.7 52 167.5
AS2 G1/8” 52 59 163.5 65 180.5
semi-automatic, w/out pressure: open AS3 G1/8” 63 74 189.5 80 206
AS5 G1/8” 85 103 250 109 266
2 PC container with PA protective guard

fully automatic, w/out pressure: open

246
