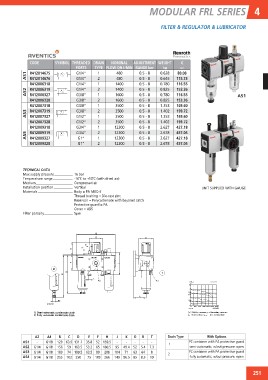

Page 257 - floMAX Catalogue 2016

MODULAR FRL SERIES 4

FILTER & REGULATOR & LUBRICATOR

CODE SYMBOL THREADED DRAIN NOMINAL ADJUSTMENT WEIGHT €

PORTS TYPE FLOW QN I/MIN RANGE bar kg X01

AS5 AS3 AS2 AS1 R412014675 G1/4” 1 480 0.5 - 8 0.628 80.08

R412014676 G1/4” 2 480 0.5 - 8 0.646 115.73

R412006318 G1/4” 1 1400 0.5 - 8 0.780 116.55

R412006319 G1/4” 2 1400 0.5 - 8 0.825 153.36

R412006327 G3/8” 1 1600 0.5 - 8 0.780 116.55 AS1

R412006328 G3/8” 2 1600 0.5 - 8 0.825 153.36

R412007318 G3/8” 1 3500 0.5 - 8 1.353 169.60

R412007319 G3/8” 2 3500 0.5 - 8 1.402 199.72

R412007327 G1/2” 1 3500 0.5 - 8 1.353 169.60

R412007328 G1/2” 2 3500 0.5 - 8 1.402 199.72

R412009318 G3/4” 1 12300 0.5 - 8 2.627 427.18

R412009319 G3/4” 2 12300 0.5 - 8 2.678 457.05

R412009327 G1” 1 12300 0.5 - 8 2.627 427.18

R412009328 G1” 2 12300 0.5 - 8 2.678 457.05

TECHNICAL DATA 16 bar UNIT SUPPLIED WITH GAUGE
Max supply pressure -10˚C to +50˚C (with dried air)
Temperature range Compressed air
Medium Vertical
Installation position Body = PA MXD 6
Materials Thread bushing = Die-cast zinc
Reservoir = Polycarbonate with bayonet catch
Protective guard = PA
Cover = ABS
5µm
Filter porosity

A2 A4 B C D E F H J K O R T Drain Type With Options
1 PC container with PA protective guard
A S1 - G1/8 129 63.5 131.7 35.8 52 159.5 - - - - - 2 semi-automatic, w/out pressure: open
A S2 G1/4 G1/8 156 59 163.5 53.2 65 180.5 95 49.4 52 5.4 7.3 PC container with PA protective guard
A S3 G1/4 G1/8 189 74 189.5 63.5 80 206 104 71 63 64 8 fully automatic, w/out pressure: open
A S4 G1/4 G1/8 255 103 250 75 109 266 140 86.5 85 8.5 10
