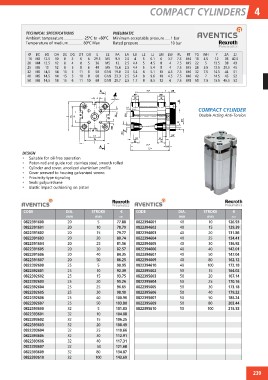

Page 245 - floMAX Catalogue 2016
P. 245
COMPACT CYLINDERS 4
TECHNICAL SPECIFICATIONS PNEUMATIC
Ambient temperature
Temperature of medium -25ºC to +80ºC Minimum acceptable pressure 1 bar
80ºC Max Rated pressure 10 bar
Ø BC BG DA DE DG DT DX E EE FA LA LB LE LJ LM LW PL RT TG WH Y ZA ZJ
16 M3 12.5 10 8 3 6 6 29.5 M5 9.9 2.5 4 5 6.1 6 3.7 7.5 M4 18 4.5 12 38 42.5
20 M4 12.5 12 8 4 8 5 36 M5 12 2.5 4.4 5 4.5 8 4 7.5 M5 22 5 13.5 38 43
25 M5 13 12 8 5 8 6 40 M5 15.6 2.5 4.4 5 5.4 8 4 7.5 M5 26 5.5 13.5 39.5 45
32 M5 14,5 14 15 5 11 8 50 G1/8 19.8 2.5 5.4 8 5.1 10 4.5 7.5 M6 32 7.5 14.5 44 51
40 M5 14,5 14 15 5 10 8 60 G1/8 23.3 2.5 5.4 8 9.6 10 4.5 7.5 M6 42 7 14.5 45 52
50 M6 14,5 18 15 6 11 10 68 G1/8 29.7 2.5 1.7 8 8.5 12 6 7.5 M8 50 7.5 15.5 45.5 53
COMPACT CYLINDER
Double Acting Anti-Torsion
DESIGN
• Suitable for oil-free operation
• Piston rod and guide rod: stainless steel, smooth rolled
• Cylinder and cover: anodized aluminium profile
• Cover screwed to housing galvanised screws
• Proximity-type signaling
• Seals: polyurethane
• Elastic impact cushioning on piston
CODE DIA. STROKE € CODE DIA. STROKE €
0822391600 mm mm X01 0822394601 mm mm X01
0822391601 0822394602
0822391602 20 5 77.88 0822394603 40 10 126.93
0822391603 0822394604
0822391604 20 10 78.79 0822394605 40 15 129.39
0822391605 0822394606
0822391606 20 15 79.77 0822394607 40 20 131.86
0822391607 0822394609
0822392600 20 20 80.74 0822394610 40 25 134.41
0822392601 0822395602
0822392602 20 25 81.56 0822395603 40 30 136.92
0822392603 0822395604
0822392604 20 30 82.57 0822395605 40 40 142.01
0822392605 0822395606
0822392606 20 40 84.35 0822395607 40 50 147.04
0822392607 0822395609
0822393600 20 50 86.25 0822395610 40 80 162.12
0822393601
0822393602 25 5 90.95 40 100 172.18
0822393603
0822393604 25 10 92.39 50 15 164.02
0822393605
0822393606 25 15 93.75 50 20 167.14
0822393607
0822393609 25 20 95.26 50 25 170.16
0822393610
25 25 96.65 50 30 173.18
25 30 98.10 50 40 179.22
25 40 100.96 50 50 185.24
25 50 103.80 50 80 203.44
32 5 101.83 50 100 215.53
32 10 104.08
32 15 106.25
32 20 108.49
32 25 110.66
32 30 112.91
32 40 117.31
32 50 121.68
32 80 134.87
32 100 143.69
