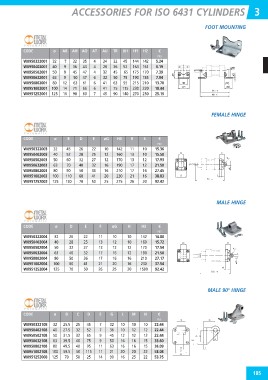

Page 191 - floMAX Catalogue 2016

ACCESSORIES FOR ISO 6431 CYLINDERS 3

FOOT MOUNTING

CODE ø AB AH AO AT AU TR UH H1 H2 €

P03

W0950322001 32 7 32 35 4 24 32 45 144 142 5.24

W0950402001 40 9 36 43 4 28 36 52 163 161 6.19

W0950502001 50 9 45 47 4 32 45 65 175 170 7.39

W0950632001 63 9 50 47 6 32 50 75 190 185 7.94

W0950802001 80 12 63 61 6 41 63 95 215 210 13.70

W0951002001 100 14 71 66 6 41 75 115 230 220 18.44

W0951252001 125 16 90 60 7 45 90 140 270 250 25.15

FEMALE HINGE

CODE ø B D E øG H3 R S €

P03

W0950322003 32 45 26 22 10 142 11 10 15.36

W0950402003 40 52 28 25 12 160 13 10 15.50

W0950502003 50 60 32 27 12 170 13 12 17.93

W0950632003 63 70 40 32 16 190 17 12 21.50

W0950802003 80 90 50 36 16 210 17 16 27.45

W0951002003 100 110 60 41 20 230 21 16 38.83

W0951252003 125 130 70 50 25 275 26 20 92.42

MALE HINGE

CODE ø D E F øG H H3 €

P03

W0950322004 32 26 22 11 10 10 142 14.80

W0950402004 40 28 25 13 12 10 160 15.72

W0950502004 50 32 27 13 12 12 170 17.54

W0950632004 63 40 32 17 16 12 190 21.50

W0950802004 80 50 36 17 16 16 210 27.17

W0951002004 100 60 41 21 20 16 230 37.54

W0951252004 125 70 50 26 25 20 1590 92.42

MALE 90° HINGE

CODE ø B C D E G L M N €

P03

W0950322108 32 25.5 25 45 7 32 10 10 10 22.44

W0950402108 40 27.5 32 52 7 36 10 12 12 22.44

W0950502108 50 31.5 32 65 9 45 12 12 12 22.44

W0950632108 63 39.5 40 75 9 50 16 16 15 33.60

W0950802108 80 49.5 40 95 11 63 16 16 15 36.09

W0951002108 100 59.5 50 115 11 21 20 20 22 58.08

W0951252008 125 70 50 25 14 90 16 25 22 53.75

185
