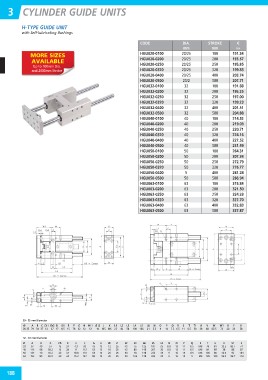

Page 194 - floMAX Catalogue 2016
P. 194
3 CYLINDER GUIDE UNITS CODE DIA. STROKE €
H-TYPE GUIDE UNIT HGU020-0100 mm mm P04
HGU020-0200
with Self-lubricating Bushings HGU020-0250 20/25 100 191.34
HGU020-0320
MORE SIZES HGU020-0400 20/25 200 193.57
AVAILABLE HGU020-0500
HGU032-0100 20/25 250 195.85
Up to 100mm Dia. HGU032-0200
and 2600mm Stroke HGU032-0250 20/25 320 199.83
HGU032-0320
HGU032-0400 20/25 400 203.74
HGU032-0500
HGU040-0100 20/2 500 207.71
HGU040-0200
HGU040-0250 32 100 191.88
HGU040-0320
HGU040-0400 32 200 195.25
HGU040-0500
HGU050-0100 32 250 197.00
HGU050-0200
HGU050-0250 32 320 199.23
HGU050-0320
HGU050-0400 32 400 201.51
HGU050-0500
HGU063-0100 32 500 204.88
HGU063-0200
HGU063-0250 40 100 214.52
HGU063-0320
HGU063-0400 40 200 219.03
HGU063-0500
40 250 220.71
40 320 224.16
40 400 227.52
40 500 231.49
50 100 264.31
50 200 307.34
50 250 272.79
50 320 276.77
5 400 281.28
50 500 286.94
63 100 315.84
63 200 321.50
63 250 324.33
63 320 327.70
63 400 332.83
63 500 337.87
20 - 25 mm Diameter
Ø A B C Ch1 Ch2 D D1 E F G H Ø I1 Ø I2 J K L1 L2 L3 L4 L5 L6 N O P Q R S T T1 U V W W1 X Y X
20-25 79 34 37 12 27 17 8.5 15 78 32 12 12 10 M5 M6 25 40 58 108 166 21 5.5 9 10 7.5 6.5 11 6.5 38 38 68 62.5 72 20 23 58
32 - 63 mm Diameter
Ø A B C Ch D E F G H ØI L1 L2 L3 L4 L5 L6 N O P Q R T U V V1 Z
32 97 49 51 15 24 4.3 93 45 12 12 25 42 75 125 187 25 6.6 12 11 6.5 M6 78 61 32.5 82.7 74
40 115 58 58.2 15 28 11 112 55 12 16 25 42 80 140 207 30 6.6 12 11 6.5 M6 84 69 38 86 87
50 137 70 70.2 20 34 18.8 134 65 15 20 25 50 78 148 223 35 9 16 15 8.5 M8 100 85 46.5 92 104
63 152 85 82.5 20 34 15.3 147 80 15 20 25 50 106 178 243 25 9 16 15 9 M8 105 100 56.5 96.7 119
188
