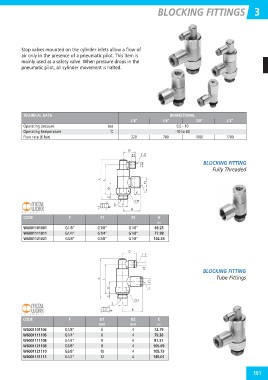

Page 197 - floMAX Catalogue 2016

BLOCKING FITTINGS 3

Stop valves mounted on the cylinder inlets allow a flow of
air only in the presence of a pneumatic pilot. This item is
mainly used as a safety valve. When pressure drops in the
pneumatic pilot, all cylinder movement is halted.

TECHNICAL DATA BIDIRECTIONAL

1/8” 1/4” 3/8” 1/2”

Operating pressure bar 0.5 - 10 1700

Operating temperature ˚C -10 to 60

Flow rate (6 bar) 320 700 1060

BLOCKING FITTING
Fully Threaded

CODE F F1 F2 €

P05

W6001101001 G1/8” G1/8” G1/8” 69.23

W6001111011 G1/4” G1/4” G1/8” 77.98

W6001121021 G3/8” G3/8” G1/8” 102.33

BLOCKING FITTING
Tube Fittings

CODE F Ø1 Ø2 €

mm mm P05

W6001101106 G1/8” 6 4 72.79

W6001111106 G1/4” 6 4 79.38

W6001111108 G1/4” 8 4 81.51

W6001121108 G3/8” 8 4 105.69

W6001121110 G3/8” 10 4 105.73

W6001131112 G1/2” 12 4 145.01

191
