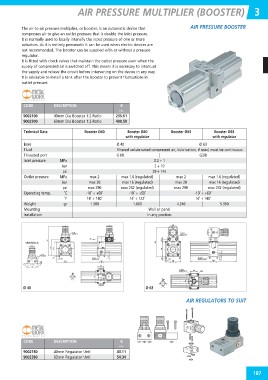

Page 193 - floMAX Catalogue 2016

AIR PRESSURE MULTIPLIER (BOOSTER) 3

The air-to-air pressure multiplier, or booster, is an automatic device that AIR PRESSURE BOOSTER
compresses air to give an outlet pressure that is double the inlet pressure.
It is normally used to locally intensify the input pressure of one or more
actuators. As it is entirely pneumatic it can be used when electric devices are
not recommended. The booster can be supplied with or without a pressure
regulator.
It is fitted with check valves that maintain the outlet pressure even when the
supply of compressed air is switched off. This means it is necessary to interrupt
the supply and relieve the circuit before intervening on the device in any way.
It is advisable to install a tank after the booster to prevent fluctuations in
outlet pressure.

CODE DESCRIPTION €

P52

9002100 40mm Dia Booster 1:2 Ratio 235.61
400.59
9002300 63mm Dia Booster 1:2 Ratio

Technical Data Booster Ø40 Booster Ø40 Booster Ø63 Booster Ø63
with regulator
with regulator

Bore Ø 40 Ø 63

Fluid Filtered unlubricated compressed air, Lubrication, if used, must be continuous

Threaded port G1/8 G3/8

Inlet pressure MPa 0.2 ÷ 1
bar 2 ÷ 10

psi 29 ÷ 145

Outlet pressure MPa max 2 max 1.6 (regulated) max 2 max 1.6 (regulated)

bar max 20 max 16 (regulated) max 20 max 16 (regulated)

psi max 290 max 232 (regulated) max 290 max 232 (regulated)

Operating temp. ˚C -10˚ ÷ +60˚ -10˚ ÷ +50˚ -10˚ ÷ +60˚

˚F 14˚ ÷ 140˚ 14˚ ÷ 122˚ 14˚ ÷ 140˚

Weight gr 1.380 1.600 4.240 5.350

Mounting Wall or panel

Installation In any position

Ø 40 Ø 63

AIR REGULATORS TO SUIT

CODE DESCRIPTION €

P52
9002180 40mm Regulator Unit
43.11
9002380 63mm Regulator Unit 54.34

187
