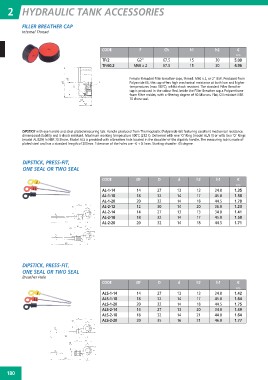

Page 186 - floMAX Catalogue 2016

2 HYDRAULIC TANK ACCESSORIES

FILLER BREATHER CAP

Internal Thread

CODE F Ch h1 h2 €

N16

TF/2 G2” 67.5 15 30 5.09

TF/60.2 M60 x 2 67.5 15 30 4.96

Female threaded filler breather caps, thread: M60 x 2, or 2” BSP. Produced from
Polyamide 66, this cap offers high mechanical resistance at both low and higher
temperatures (max 100˚C), whilst shock resistant. The standard Filler Breather
cap is produced in the colour Red. Inside the Filler Breather cap a Polyurethane
foam filter resides, with a filtering degree of 50 Microns. Flat, Oil resistant NBR
70 shore seal.

DIPSTICK with eye handle and steel plated measuring tab. Handle produced from Thermoplastic (Polyamide 66) featuring excellent mechanical resistance,
dimensional stability and is shock resistant. Maximum working temperature 100˚C (212 F). Delivered with one ‘O’ Ring (model AL/S 1) or with two ‘O’ Rings
(model AL/S29) in NBR 70 Shore. Model ALS is provided with a breather hole located in the shoulder of the dipstick handle. The measuring tab is made of
plated steel and has a standard length of 200mm. Tolerance of the holes are - 0 + 0.1mm. Starting chamfer: 45 degree.

DIPSTICK, PRESS-FIT,
ONE SEAL OR TWO SEAL

CODE ØF D d h2 h1 €

N16

AL-1-14 14 27 13 13 34.0 1.35

AL-1-18 18 32 14 17 45.0 1.58

AL-1-20 20 32 14 18 44.5 1.70

AL-2-12 12 30 14 20 36.0 1.23

AL-2-14 14 27 13 13 34.0 1.41

AL-2-18 18 32 14 17 45.0 1.59

AL-2-20 20 32 14 18 44.5 1.71

DIPSTICK, PRESS-FIT,
ONE SEAL OR TWO SEAL

Breather Hole

CODE ØF D d h2 h1 €

N16

ALS-1-14 14 27 13 13 34.0 1.42

ALS-1-18 18 32 14 17 45.0 1.64

ALS-1-20 20 32 14 18 44.5 1.75

ALS-2-14 14 27 13 20 34.0 1.49

ALS-2-18 18 32 14 21 44.0 1.64

ALS-2-20 20 35 16 21 46.0 1.77
