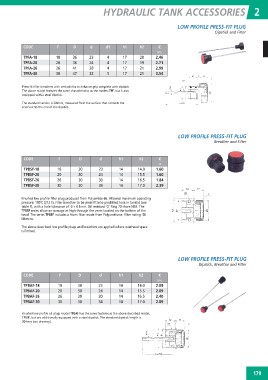

HYDRAULIC TANK ACCESSORIES 2

LOW PROFILE PRESS-FIT PLUG

Dipstick and Filter

CODE F D d d1 h1 h2 €

N16

TPFA-18 18 36 23 4 17 20 2.46

TPFA-20 20 36 24 4 17 19 2.71

TPFA-26 26 41 28 4 17 21 2.99

TPFA-30 30 47 33 5 17 21 3.54

Press-fit filler breathers with vertical ribs to enhance grip complete with dipstick.
The above model features the same characteristics as the models TPF, but is also
equipped with a steel dipstick.

The standard version is 200mm, measured from the surface that contacts the
reservoir to the end of the dipstick.

LOW PROFILE PRESS-FIT PLUG

Breather and Filter

CODE F D d h1 h2 €

16

TPBSF-18 18 30 23 14 14.0 1.60

TPBSF-20 20 30 24 14 15.5 1.60

TPBSF-26 26 30 30 14 16.5 1.84

TPBSF-30 30 30 34 14 17.0 2.39

Knurled low profile filler plug produced from Polyamide 66. Allowed maximum operating
pressure: 100˚C (212 F). Filler breather to be press-fit into predrilled hole in tanklid (see
table F), with a hole tolerance of -0 + 0.1mm. Oil resistant ‘O’ Ring 70 shore NBR. The
TPBSF series allow air passage at high through the vents located on the bottom of the
head. The series TPSBF includes a foam filter made from Polyurethane, filter rating: 50
Microns.
The above described low profile plugs and breathers are applied where overhead space
is limited.

LOW PROFILE PRESS-FIT PLUG

Dipstick, Breather and Filter

CODE F D d h1 h2 €

N16

TPBAF-18 18 30 23 14 14.0 2.09

TPBAF-20 20 30 24 14 15.5 2.09

TPBAF-26 26 30 30 14 16.5 2.40

TPBAF-30 30 30 34 14 17.0 2.89

Knurled low profile oil plugs model TPBAF has the same features as the above described model,
TPBSF, but are additionally equipped with a steel dipstick. The standard dipstick length is
204mm (see drawing).

179
