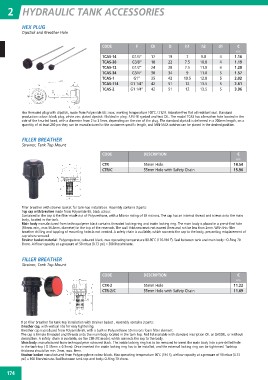

Page 180 - floMAX Catalogue 2016

2 HYDRAULIC TANK ACCESSORIES

HEX PLUG

Dipstick and Breather Hole

CODE F Ch D h1 h2 d1 €

N16

TCAS-14 G1/4” 17 19 7 9.0 4 1.16

TCAS-38 G3/8” 18 22 7.5 10.0 4 1.19

TCAS-12 G1/2” 24 28 7.5 11.0 4 1.28

TCAS-34 G3/4” 30 34 9 11.0 5 1.57

TCAS-1 G1” 35 42 10.5 12.0 5 2.02

TCAS-114 G1 1/4” 42 51 12 13.5 5 2.61

TCAS-2 G1 1/4” 42 51 12 13.5 5 3.96

Hex threaded plug with dipstick, made from Polyamide 66 : max. working temperature 100˚C / 212 F. Asbestos-free flat oil resistant seal. Standard
production colour: black plug, white zinc plated dipstick. Molded in plug : UNI fill symbol and text OIL. The model TCAS has a breather hole located in the
side of the knurled head, with a diameter from 2 to 3.5mm, depending on the size of the plug. The standard dipstick is delivered in a 200mm length, on a
quantity of at least 250 pcs they can be manufactured to the customers specific length, and MIN-MAX notches can be placed in the desired position.

FILLER BREATHER

Strainer, Tank Top Mount

CODE DESCRIPTION €
N16

14.54
CTR 55mm Hole
15.96
CTR/C 55mm Hole with Safety Chain

Filler breather with strainer basket for tank-top installation. Assembly contains 3 parts:
Top cap with breather made from Polyamide 66, black colour.
Contained in the cap is the filter made out of Polyurethane, with a Micron rating of 50 microns. The cap has an internal thread and screws onto the main
body, located in the tank.
Main body manufactured from technopolymer black contains threaded locking ring and inside locking ring. The main body is placed in a pre-drilled hole
(55mm. min., max 55.3mm. diameter) in the top of the reservoir. The wall thickness must not exceed 8mm and not be less than 2mm. With this filler
breather drilling and tapping of mounting holes is not needed. A safety chain is available, which connects the cap to the body, preventing misplacement of
cap when removed.
Strainer basket material : Polypropelene, coloured black, max operating temperature 80-90˚C (176-194 F). Seal between tank and main body : O-Ring 70
Shore. Airflow capacity at a pressure of 50 mbar (0.73 psi) = 300 liters/minute.

FILLER BREATHER

Strainer, Tank Top Mount

CODE DESCRIPTION €
N16

11.22
CTR-2 55mm Hole
11.69
CTR-2/C 55mm Hole with Safety Chain

8 pt Filler breather for tank-top installation with strainer basket . Assembly contains 3 parts:
Breather cap, with vertical ribs for easy tightening.
Breather cap is produced from Polyamide 66, with a built-in Polyurethane 50 microns foam filter element.
The cap is female threaded and threads onto the main body located in the tank top. Red lid available with standard inscription OIL or GASOIL, or without
description. A safety chain is available, on the CTR-2/C model, which connects the cap to the body.
Main body: manufactured from technopolymer coloured black. The inside locking ring has to be removed to insert the main body into a pre-drilled hole
in the tank-top ( O 55mm ± 0.3mm). Once inserted the inside locking ring has to be installed, and the external locking ring can be tightened. Tanktop
thickness should be min. 2mm, max. 8mm.
Strainer basket manufactured from Polypropylene colour black. Max operating temperature 90˚C (194 F), airflow capacity at a pressure of 50 mbar (0.73
psi) = 100 liters/minute. Seal between tank-top and body: O-Ring 70 shore.

174
