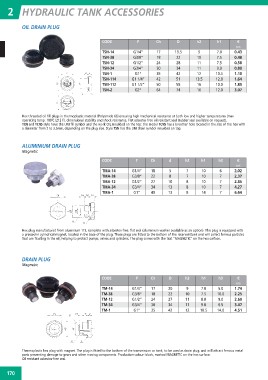

2 HYDRAULIC TANK ACCESSORIES

OIL DRAIN PLUG

CODE F Ch D h2 h1 €

N16

TSN-14 G1/4” 17 19.5 9 7.0 0.43

TSN-38 G3/8” 18 22 10 7.5 0.48

TSN-12 G1/2” 24 28 11 7.5 0.58

TSN-34 G3/4” 30 34 11 9.0 0.80

TSN-1 G1” 35 42 12 10.5 1.10

TSN-114 G1 1/4” 42 51 13.5 12.0 1.64

TSN-112 G1 1/2” 50 58 16 10.0 1.85

TSN-2 G2” 64 74 16 12.0 3.07

Hex threaded oil fill plugs in thermoplastic material (Polyamide 66) ensuring high mechanical resistance at both low and higher temperatures (max
operating temp. 100˚C (212 F), dimensional stability and shock resistance. Flat asbestos free oil resistant seal (rubber seal available on request).
TCN and TCNS style have the UNI fill symbol and the work OIL moulded on the top: the model TCNS has a breather hole located in the size of the hex with
a diameter from 2 to 3.5mm, depending on the plug size. Style TSN has the UNI drain symbol moulded on top.

ALUMINIUM DRAIN PLUG

Magnetic

CODE F Ch d h2 h1 h3 €

N16

TMA-14 G1/4” 18 5 7 10 6 2.02

TMA-38 G3/8” 22 8 7 10 7 2.37

TMA-12 G1/2” 27 10 8 10 7 2.85

TMA-34 G3/4” 34 13 8 10 7 4.27

TMA-1 G1” 40 13 8 14 7 6.64

Hex plug manufactured from aluminium 11S, complete with asbestos-free, flat seal (aluminium washer available as an option). This plug is equipped with
a pressed-in cylindrical magnet, located in the base of the plug. These plugs are fitted to the bottom of the reservoir/tank and will collect ferrous particles
that are floating in the oil, helping to protect pumps, valves and cylinders. The plug comes with the text “MAGNETIC” on the hex surface.

DRAIN PLUG

Magnetic

CODE F Ch D h2 h1 h3 €

N16

TM-14 G1/4” 17 20 9 7.0 5.0 1.74

TM-38 G3/8” 18 22 10 7.5 10.0 2.25

TM-12 G1/2” 24 27 11 8.0 9.0 2.60

TM-34 G3/4” 30 34 11 9.0 6.5 3.47

TM-1 G1” 35 42 12 10.5 14.0 4.51

Thermoplastic hex plug with magnet. The plug is fitted to the bottom of the transmission or tank, to be used as drain plug; and will attract ferrous metal
parts preventing damage to gears and other moving components. Production colour: black, marked MAGNETIC on the hex surface.
Oil resistant asbestos-free seal.
