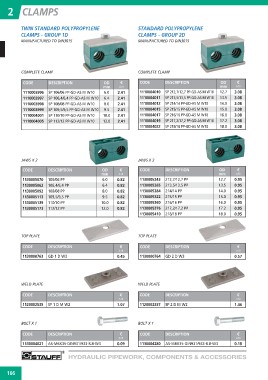

Page 172 - floMAX Catalogue 2016

2 CLAMPS STANDARD POLYPROPYLENE
CLAMPS - GROUP 2D
TWIN STANDARD POLYPROPYLENE
CLAMPS - GROUP 1D MANUFACTURED TO DIN3015

MANUFACTURED TO DIN3015

COMPLETE CLAMP COMPLETE CLAMP

CODE DESCRIPTION OD € CODE DESCRIPTION OD €
mm mm
1110003996 SP 106/06 PP-GD-AS M W10 6.0 A10 1110004010 SP 212,7/12,7 PP-GD-AS M W10 12.7 A10
1110003997 SP 106,4/6,4 PP-GD-AS M W10 6.4 1110004011 SP 213,5/13,5 PP-GD-AS M W10 13.5
1110003998 SP 108/08 PP-GD-AS M W10 8.0 2.41 1110004012 SP 214/14 PP-GD-AS M W10 14.0 3.08
1110003999 SP 109,5/9,5 PP-GD-AS M W10 9.5 2.41 1110004015 SP 215/15 PP-GD-AS M W10 15.0 3.08
1110004001 SP 110/10 PP-GD-AS M W10 10.0 2.41 1110004017 SP 216/16 PP-GD-AS M W10 16.0 3.08
1110004005 SP 112/12 PP-GD-AS M W10 12.0 2.41 1110004019 SP 217,2/17,2 PP-GD-AS M W10 17.2 3.08
2.41 1110004022 SP 218/18 PP-GD-AS M W10 18.0 3.08
2.41 3.08
3.08

JAWS X 2 JAWS X 2

CODE DESCRIPTION OD € CODE DESCRIPTION OD €
mm mm
A10 A10

1130005070 106/06 PP 6.0 0.82 1130005243 212,7/12,7 PP 12.7 0.95
1130005062 106,4/6,4 PP 1130005265 213,5/13,5 PP
1130005092 108/08 PP 6.4 0.82 1130005284 214/14 PP 13.5 0.95
1130005113 109,5/9,5 PP 1130005322 215/15 PP
1130005139 110/10 PP 8.0 0.82 1130005360 216/16 PP 14.0 0.95
1130005173 112/12 PP 1130005376 217,2/17,2 PP
9.5 0.82 1130005410 218/18 PP 15.0 0.95

10.0 0.82 16.0 0.95

12.0 0.82 17.2 0.95

18.0 0.95

TOP PLATE TOP PLATE

CODE DESCRIPTION € CODE DESCRIPTION €

A10 A10

1130000763 GD 1 D W3 0.45 1130000764 GD 2 D W3 0.57

WELD PLATE WELD PLATE

CODE DESCRIPTION € CODE DESCRIPTION €

A10 A10

1120002535 SP 1 D M W2 1.07 1120002537 SP 2 D M W2 1.46

BOLT X 1 BOLT X 1

CODE DESCRIPTION € CODE DESCRIPTION €

A10 A10

1130004021 AS-M6X35-DIN931/933-8.8-W3 0.09 1130004280 AS-M8X35-DIN931/933-8.8-W3 0.18

HYDRAULIC PIPEWORK, COMPONENTS & ACCESSORIES

166
