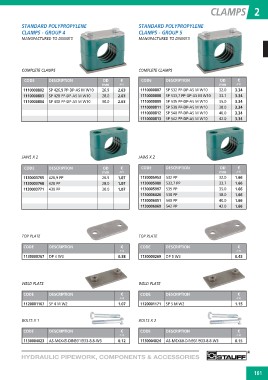

Page 167 - floMAX Catalogue 2016

STANDARD POLYPROPYLENE CLAMPS 2
CLAMPS - GROUP 4
STANDARD POLYPROPYLENE
MANUFACTURED TO DIN3015 CLAMPS - GROUP 5

MANUFACTURED TO DIN3015

COMPLETE CLAMPS COMPLETE CLAMPS

CODE DESCRIPTION OD € CODE DESCRIPTION OD €
mm mm
A10 A10

1110000802 SP 426,9 PP-DP-AS M W10 26.9 2.63 1110000807 SP 532 PP-DP-AS M W10 32.0 3.34

1110000803 SP 428 PP-DP-AS M W10 28.0 2.63 1110000808 SP 533,7 PP-DP-AS M W10 33.7 3.34

1110000804 SP 430 PP-DP-AS M W10 30.0 2.63 1110000809 SP 535 PP-DP-AS M W10 35.0 3.34

1110000811 SP 538 PP-DP-AS M W10 38.0 3.34

1110000812 SP 540 PP-DP-AS M W10 40.0 3.34

1110000813 SP 542 PP-DP-AS M W10 42.0 3.34

JAWS X 2 JAWS X 2

CODE DESCRIPTION OD € CODE DESCRIPTION OD €
mm mm
A10 A10

1130003765 426,9 PP 26.9 1.07 1130005953 532 PP 32.0 1.66
1130003768 428 PP 1130005980 533,7 PP
1130003771 430 PP 28.0 1.07 1130005997 535 PP 33.7 1.66
1130006026 538 PP
30.0 1.07 1130006051 540 PP 35.0 1.66
1130006069 542 PP
38.0 1.66

40.0 1.66

42.0 1.66

TOP PLATE TOP PLATE

CODE DESCRIPTION € CODE DESCRIPTION €

A10 A10

1130000267 DP 4 W3 0.38 1130000269 DP 5 W3 0.45

WELD PLATE WELD PLATE

CODE DESCRIPTION € CODE DESCRIPTION €

A10 A10

1120001167 SP 4 M W2 1.07 1120001171 SP 5 M W2 1.15

BOLTS X 1 BOLTS X 2 €

CODE DESCRIPTION € CODE DESCRIPTION A10

A10 0.15

1130004023 AS-M6X45-DIN931/933-8.8-W3 0.12 1130004024 AS-M6X60-DIN931/933-8.8-W3 161

HYDRAULIC PIPEWORK, COMPONENTS & ACCESSORIES
