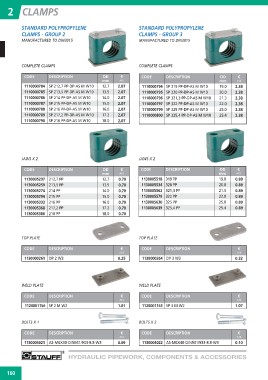

Page 166 - floMAX Catalogue 2016

2 CLAMPS STANDARD POLYPROPYLENE
CLAMPS - GROUP 3
STANDARD POLYPROPYLENE
CLAMPS - GROUP 2 MANUFACTURED TO DIN3015

MANUFACTURED TO DIN3015

COMPLETE CLAMPS COMPLETE CLAMPS

CODE DESCRIPTION OD € CODE DESCRIPTION OD €
mm mm
A10 A10

1110000784 SP 212,7 PP-DP-AS M W10 12.7 2.07 1110000794 SP 319 PP-DP-AS M W10 19.0 2.38

1110000785 SP 213,5 PP-DP-AS M W10 13.5 2.07 1110000795 SP 320 PP-DP-AS M W10 20.0 2.38

1110000786 SP 214 PP-DP-AS M W10 14.0 2.07 1110000796 SP 321,3 PP-DP-AS M W10 21.3 2.38

1110000787 SP 215 PP-DP-AS M W10 15.0 2.07 1110000797 SP 322 PP-DP-AS M W10 22.0 2.38

1110000788 SP 216 PP-DP-AS M W10 16.0 2.07 1110000799 SP 325 PP-DP-AS M W10 25.0 2.38

1110000789 SP 217,2 PP-DP-AS M W10 17.2 2.07 1110000800 SP 325,4 PP-DP-AS M W10 25.4 2.38

1110000790 SP 218 PP-DP-AS M W10 18.0 2.07

JAWS X 2 JAWS X 2

CODE DESCRIPTION OD € CODE DESCRIPTION OD €
mm mm
A10 A10

1130005237 212,7 PP 12.7 0.70 1130005518 319 PP 19.0 0.89
1130005259 213,5 PP 1130005534 320 PP
1130005274 214 PP 13.5 0.70 1130005562 321,3 PP 20.0 0.89
1130005294 215 PP 1130005579 322 PP
1130005333 216 PP 14.0 0.70 1130005630 325 PP 21.3 0.89
1130005368 217,2 PP 1130005639 325,4 PP
1130005386 218 PP 15.0 0.70 22.0 0.89

16.0 0.70 25.0 0.89

17.2 0.70 25.4 0.89

18.0 0.70

TOP PLATE TOP PLATE

CODE DESCRIPTION € CODE DESCRIPTION €

A10 A10

1130000261 DP 2 W3 0.25 1130000264 DP 3 W3 0.32

WELD PLATE WELD PLATE

CODE DESCRIPTION € CODE DESCRIPTION €

A10 A10

1120001156 SP 2 M W2 1.01 1120001161 SP 3 M W2 1.07

BOLTS X 1 BOLTS X 2

CODE DESCRIPTION € CODE DESCRIPTION €

A10 A10

1130004021 AS-M6X30-DIN931/933-8.8-W3 0.09 1130004022 AS-M6X40-DIN931/933-8.8-W3 0.10

HYDRAULIC PIPEWORK, COMPONENTS & ACCESSORIES
