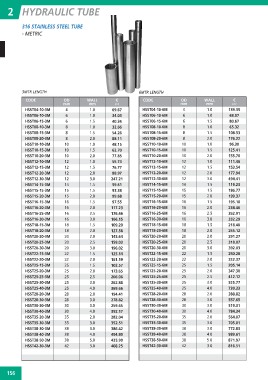

Page 162 - floMAX Catalogue 2016

2 HYDRAULIC TUBE

316 STAINLESS STEEL TUBE
- METRIC

3MTR LENGTH OD WALL € 6MTR LENGTH OD WALL €
mm mm mm mm
CODE N13 CODE A12
4 1.0 4 1.0
HSST04-10-3M 6 1.0 69.67 HSST04-10-6M 6 1.0 139.35
HSST06-10-3M 6 1.5 34.03 HSST06-10-6M 6 1.5 68.07
HSST06-15-3M 8 1.0 40.34 HSST06-15-6M 8 1.0 80.67
HSST08-10-3M 8 1.5 32.66 HSST08-10-6M 8 1.5 65.32
HSST08-15-3M 8 2.0 54.26 HSST08-15-6M 8 2.0 108.53
HSST08-20-3M 10 1.0 88.11 HSST08-20-6M 10 1.0 176.22
HSST10-10-3M 10 1.5 48.15 HSST10-10-6M 10 1.5 96.30
HSST10-15-3M 10 2.0 62.70 HSST10-15-6M 10 2.0 125.41
HSST10-20-3M 12 1.0 77.85 HSST10-20-6M 12 1.0 155.70
HSST12-10-3M 12 1.5 55.73 HSST12-10-6M 12 1.5 111.46
HSST12-15-3M 12 2.0 76.77 HSST12-15-6M 12 2.0 153.54
HSST12-20-3M 12 3.0 88.97 HSST12-20-6M 12 3.0 177.94
HSST12-30-3M 14 1.5 247.21 HSST12-30-6M 14 1.5 494.41
HSST14-15-3M 15 1.5 59.61 HSST14-15-6M 15 1.5 119.23
HSST15-15-3M 15 2.0 93.38 HSST15-15-6M 15 2.0 186.77
HSST15-20-3M 16 1.5 99.68 HSST15-20-6M 16 1.5 199.37
HSST16-15-3M 16 2.0 97.55 HSST16-15-6M 16 2.0 195.10
HSST16-20-3M 16 2.5 117.23 HSST16-20-6M 16 2.5 234.46
HSST16-25-3M 16 3.0 176.46 HSST16-25-6M 16 3.0 352.91
HSST16-30-3M 18 1.5 166.15 HSST16-30-6M 18 1.5 332.29
HSST18-15-3M 18 2.0 109.20 HSST18-15-6M 18 2.0 218.40
HSST18-20-3M 20 2.0 127.56 HSST18-20-6M 20 2.0 255.12
HSST20-20-3M 20 2.5 145.64 HSST20-20-6M 20 2.5 291.27
HSST20-25-3M 20 3.0 159.03 HSST20-25-6M 20 3.0 318.07
HSST20-30-3M 22 1.5 196.02 HSST20-30-6M 22 1.5 392.03
HSST22-15-3M 22 2.0 125.14 HSST22-15-6M 22 2.0 250.28
HSST22-20-3M 25 1.5 161.19 HSST22-20-6M 25 1.5 322.37
HSST25-15-3M 25 2.0 102.57 HSST25-15-6M 25 2.0 205.14
HSST25-20-3M 25 2.5 173.65 HSST25-20-6M 25 2.5 347.30
HSST25-25-3M 25 3.0 206.06 HSST25-25-6M 25 3.0 412.12
HSST25-30-3M 25 4.0 262.88 HSST25-30-6M 25 4.0 525.77
HSST25-40-3M 28 2.0 369.66 HSST25-40-6M 28 2.0 739.33
HSST28-20-3M 28 3.0 194.41 HSST28-20-6M 28 3.0 388.82
HSST28-30-3M 30 3.0 278.82 HSST28-30-6M 30 3.0 557.65
HSST30-30-3M 30 4.0 259.65 HSST30-30-6M 30 4.0 519.31
HSST30-40-3M 35 2.0 392.17 HSST30-40-6M 35 2.0 784.34
HSST35-20-3M 35 3.0 282.04 HSST35-20-6M 35 3.0 564.07
HSST35-30-3M 38 3.0 352.51 HSST35-30-6M 38 3.0 705.01
HSST38-30-3M 38 4.0 386.42 HSST38-30-6M 38 4.0 772.83
HSST38-40-3M 38 5.0 494.80 HSST38-40-6M 38 5.0 989.61
HSST38-50-3M 42 3.0 435.99 HSST38-50-6M 42 3.0 871.97
HSST42-30-3M 408.25 HSST42-30-6M 816.51

156
