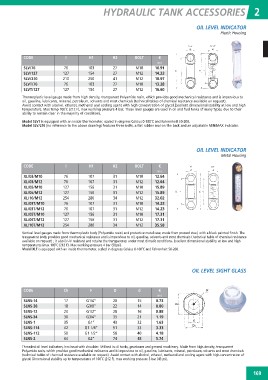

HYDRAULIC TANK ACCESSORIES 2

OIL LEVEL INDICATOR

Plastic Housing

CODE I H1 H2 BOLT €

N16

SLV/76 76 103 27 M10 10.91

SLV/127 127 154 27 M12 14.23

SLV/210 210 250 41 M12 18.97

SLVT/76 76 103 27 M10 13.28

SLVT/127 127 154 27 M12 16.60

Thermoplastic level gauge made from high density, transparent Polyamide resin, which provides good mechanical resistance and is impervious to
oil, gasoline, lubricants, mineral, petroleum, solvents and most chemicals (technical tables of chemical resistance available on request).
Avoid contact with alcohol, ethanol, methanol and cooling agent with high concentration of glycol.Excellent dimensional stability at low and high
temperature. Max temp 100˚C (212 F), max working pressure 4 bar. These level gauges are used in oil and fuel tanks of many types, due to their
ability to remain clear in the majority of conditions.

Model SLVT is equipped with an inside thermometer, scaled in degrees Celcius 0-100˚C and Fahrenheit 50-200.
Model SLV/210 (no reference to the above drawing) features three bolts, a flat rubber seal on the back and an adjustable MIN/MAX indicator.

OIL LEVEL INDICATOR

Metal Housing

CODE I H1 H2 BOLT €

N16

XL/03/M10 76 107 31 M10 12.64

XL/03/M12 76 107 31 M12 12.64

XL/05/M10 127 156 31 M10 15.89

XL/05/M12 127 156 31 M12 15.89

XL/10/M12 254 280 34 M12 32.02

XL/03T/M10 76 107 31 M10 14.23

XL/03T/M12 76 107 31 M12 14.23

XL/05T/M10 127 156 31 M10 17.31

XL/05T/M12 127 156 31 M12 17.31

XL/10T/M12 254 280 34 M12 35.58

Vertical level gauges made from thermoplastic body (Polyamide resin) and protective metal case, made from pressed steel, with a black painted finish. The
transparent body provides good mechanical resistance and is impervious to oil, gasoline, solvents and most chemicals ( technical table of chemical resistance
available on request) ; it also is UV resistant and retains the transparency under most climatic conditions. Excellent dimensional stability at low and high
temperatures (max 100˚C (212 F). Max working pressure 4 bar (58psi).
Model XLT is equipped with an inside thermometer, scaled in degrees Celcius 0-100˚C and Fahrenheit 50-200.

OIL LEVEL SIGHT GLASS

CODE Ch F D d €

N16

SLNS-14 17 G1/4” 20 15 0.73

SLNS-38 18 G3/8” 22 14 0.80

SLNS-12 24 G1/2” 28 16 0.88

SLNS-34 30 G3/4” 35 21 1.19

SLNS-1 35 G1” 43 32 1.63

SLNS-114 42 G1 1/4” 51 33 3.33

SLNS-112 50 G1 1/2” 58 40 4.18

SLNS-2 64 G2” 74 48 5.74

Threaded oil level indicators, hex head with shoulder. Utilised in oil tanks, gearboxes and general machinery. Made from high density, transparent
Polyamide resin, which provides good mechanical resistance and is impervious to oil, gasoline, lubricants, mineral, petroleum, solvents and most chemicals
(technical tables of chemical resistance available on request). Avoid contact with alcohol, ethanol, methanol and cooling agent with high concentration of
glycol. Dimensional stability up to temperatures of 100˚C (212 F), max working pressure 3 bar (43 psi).

169
