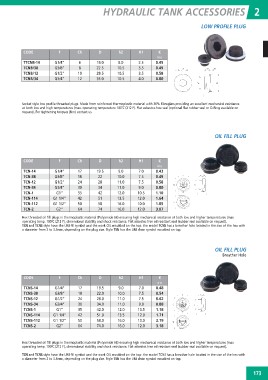

Page 179 - floMAX Catalogue 2016

HYDRAULIC TANK ACCESSORIES 2

LOW PROFILE PLUG

CODE F Ch D h2 H1 €

N16

TTCNB-14 G1/4” 6 18.0 8.0 2.5 0.45

TCNB/38 G3/8” 8 22.5 10.5 3.5 0.49

TCNB/12 G1/2” 10 28.5 10.5 3.5 0.58

TCNB/34 G3/4” 12 35.0 10.5 4.0 0.80

Socket style low profile threaded plugs. Made from reinforced thermoplastic material with 30% fibreglass providing an excellent mechanical resistance
at both low and high temperatures (max. operating temperature 100˚C (212 F). Flat asbestos-free seal (optional flat rubber seal or O-Ring available on
request). For tightening torques (Nm) contact us.

OIL FILL PLUG

CODE F Ch D h2 H1 €

N16

TCN-14 G1/4” 17 19.5 9.0 7.0 0.43

TCN-38 G3/8” 18 22 10.0 7.5 0.49

TCN-12 G1/2” 24 28 11.0 7.5 0.58

TCN-34 G3/4” 30 34 11.0 9.0 0.80

TCN-1 G1” 35 42 12.0 10.5 1.10

TCN-114 G1 1/4” 42 51 13.5 12.0 1.64

TCN-112 G1 1/2” 50 58 16.0 10.0 1.85

TCN-2 G2” 64 74 16.0 12.0 3.07

Hex threaded oil fill plugs in thermoplastic material (Polyamide 66) ensuring high mechanical resistance at both low and higher temperatures (max
operating temp. 100˚C (212 F), dimensional stability and shock resistance. Flat asbestos free oil resistant seal (rubber seal available on request).
TCN and TCNS style have the UNI fill symbol and the work OIL moulded on the top: the model TCNS has a breather hole located in the size of the hex with
a diameter from 2 to 3.5mm, depending on the plug size. Style TSN has the UNI drain symbol moulded on top.

OIL FILL PLUG

Breather Hole

CODE F Ch D h2 H1 €

N16

TCNS-14 G1/4” 17 19.5 9.0 7.0 0.48

TCNS-38 G3/8” 18 22.0 10.0 7.5 0.54

TCNS-12 G1/2” 24 28.0 11.0 7.5 0.62

TCNS-34 G3/4” 30 34.0 11.0 9.0 0.88

TCNS-1 G1” 35 42.0 12.0 10.5 1.18

TCNS-114 G1 1/4” 42 51.0 13.5 12.0 1.71

TCNS-112 G1 1/2” 50 58.0 16.0 10.0 2.19

TCNS-2 G2” 64 74.0 16.0 12.0 3.18

Hex threaded oil fill plugs in thermoplastic material (Polyamide 66) ensuring high mechanical resistance at both low and higher temperatures (max
operating temp. 100˚C (212 F), dimensional stability and shock resistance. Flat asbestos free oil resistant seal (rubber seal available on request).
TCN and TCNS style have the UNI fill symbol and the work OIL moulded on the top: the model TCNS has a breather hole located in the size of the hex with
a diameter from 2 to 3.5mm, depending on the plug size. Style TSN has the UNI drain symbol moulded on top.

173
